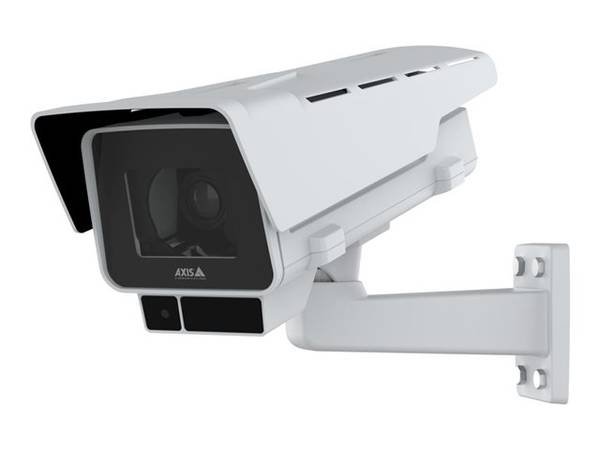

AXIS P1388-LE 7976024
SKU
7976024
CA$1,779.50
1/1.8in image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 4K / 8MP resolution, day/night box camera with Deep Learning Processing Unit (DLPU). WDR and Lightfinder 2.0. OptimizedIR, a power-efficient 850nm IR LED technology covering 50 meters (164 feet). Varifocal IR corrected 3.9-10 mm F1.5 P-iris lens and remote focus. Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 8 MP stream up to 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio with speaker pairing, audio detection with either optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local vide
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P13 Series P1388-LE - network surveillance camera - box - TAA Compliant Device Type: Network surveillance camera - fixed - box - outdoor - vandal / weatherproof Audio: Yes: two-way audio capability, speaker pairing Camera Mount Type: Wall mount Dimensions (WxDxH): 6.3 in Weight: 5.42 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 2.6 x Max Resolution: 3840 x 2160 Frame Rate (max): 60 frames per second Motion Detection: Yes Optical Sensor Type: PS RGB CMOS - 1/1.8" - 8 MP Minimum Illumination: 0.13 lux - color, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.03 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.3 lux - color, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.06 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE Focal Length Control: Vari-focal Focal Length: 3.9 mm - 10 mm Lens Mounting: CS-mount Lens Iris: F/1.5 - auto iris (P-Iris) Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Control Interface: RS-485, RS-422 Voltage: DC 10 - 28 V / PoE Plus Class 4 Features: IR Corrected lens, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, defogging, barrel distortion correction, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, OptimizedIR, digital PTZ function, control queue, on-screen directional indicator, guard tour, auto gain control, simplex audio, half duplex audio, full duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, leveling assistant, Remote Back Focus, scene metadata, signed firmware, brute force delay protection, digest authentication, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 140 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability, speaker pairing Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Box Camera Mount Type: Wall mount Connectivity Technology: Wired Width: 6.3 in Weight: 5.42 lbs Localization: Argentina, Australia, Brazil, China, European Union, India, Japan, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - outdoor - vandal / weatherproof Digital Video Format: H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC Max Digital Video Resolution: 3840 x 2160 Motion Detection: Yes Exposure Range: 2 sec - 1/66500 sec Minimum Illumination: 0.13 lux - color, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.03 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.3 lux - color, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.06 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE Infrared LEDs: Yes Infrared Distance: 164 ft Video Capture: 3840 x 2160, WDR off @ 50/60 fps ¦ 3840 x 2160, WDR on @ 25/30 fps RAM: 2 GB Flash Memory: 8 GB Features: IR Corrected lens, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, defogging, barrel distortion correction, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, OptimizedIR, digital PTZ function, control queue, on-screen directional indicator, guard tour, auto gain control, simplex audio, half duplex audio, full duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, leveling assistant, Remote Back Focus, scene metadata, signed firmware, brute force delay protection, digest authentication, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering - Image Sensor
Type: 8 MP PS RGB CMOS 1/1.8" - Lens Construction
Type: CS-mount - vari-focal Optical Zoom: 2.6 x Focal Length: 3.9 mm - 10 mm Lens Iris: F/1.5 auto iris (P-Iris) Horizontal Field of View (degree): 46 - 122 Vertical Field of View (degree): 26 - 64 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf Control Interface: RS-485, RS-422 Alarm Inputs Qty: 2 - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 - terminal block Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3, FIPS 140 - Miscellaneous
Included Accessories: Terminal block connectors, wall mount kit, owner authentication key TAA Compliant: Yes Compliant Standards: IEEE 802.1ar, IEEE 802.1x, UL, cUL, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, ETSI EN 303 645, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, IEEE 802.3af, IEEE 802.3at, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907, PVC-free, BFR-free, CFR free Color: White, NCS S 1002-B - Power
Power Requirements: DC 10 - 28 V / PoE Plus Class 4 - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Live Privacy Shield, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: POLAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02738-001 |
| MFG Part# | 02738-001 |
| UPC | 7331021082717 |
| Max Resolution | 3840 x 2160 |
| Device Type | Network surveillance camera |
| Optical Zoom | 2.6 x |
| Connectivity Technology | Wired |
| Form Factor | Box |
| Type | CS-mount - vari-focal |
| Color | NCS S 1002-B, White |
| Digital Video Format | AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Focal Length | 3.9 mm - 10 mm |
| Encryption Algorithm | FIPS 140, TLS 1.2, TLS 1.3 |
