AXIS P3735-PLE 7369649
SKU
7369649
Category: PC & Network Cameras
- Primary Information

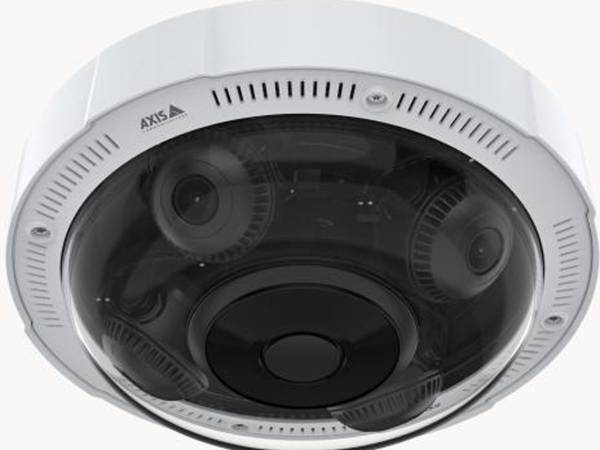

Product Description: AXIS P37 Series P3735-PLE - network panoramic camera - dome - TAA Compliant Device Type: Network panoramic camera - multi-sensor - dome - outdoor - tamper-resistant / weatherproof Audio: Yes: two-way audio via optional audio and I/O interface, speaker pairing Dimensions (WxDxH): 8 in x 8 in x 3.6 in Weight: 4.41 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 2.5 x Max Resolution: 1920 x 1080 Frame Rate (max): 30 frames per second Motion Detection: Yes Video Modes: 1080p Optical Sensor Type: PS RGB CMOS - 4 x 1/2.8" - 4x2MP Minimum Illumination: 0.14 lux - color - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Focal Length Control: Vari-focal Focal Length: 3.2 mm - 8.1 mm Focus Adjustment: (min distance 1.6 ft) Lens Iris: F/1.9-3.2 - fixed iris Panning Range (degree): -90 to +90 Tilting Range (degree): 25 to 95 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Voltage: PoE Plus Class 4 Features: IR Corrected lens, remote zoom, remote focus, infrared-cut filter, auto IR control, -5° / +95° rotation, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 55 dB signal-to-noise ratio, Forensic WDR, 2D Digital Noise Reduction Technology, 3D Digital Noise Reduction Technology, saturation control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, exposure zone, defogging, barrel distortion correction, compression, rotation mode, Corridor mode, image mirror, image overlay, text overlay, dynamic text overlay, polygon privacy mask, Lightfinder technology, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Auto Focus, Pixel Counter Support, scene metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering, tampering alarm, human detection, Vehicle Detection, Line Crossing Detection, object enter area detection, object leave area detection, up to 8 view areas, trigger recording, 802.1x authentication, aluminum alloy/polycarbonate housing, PoE support, 850nm illuminator TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 122 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network panoramic camera Audio Support: Yes: two-way audio via optional audio and I/O interface, speaker pairing Form Factor: Dome Connectivity Technology: Wired Width: 8 in Depth: 8 in Height: 3.6 in Weight: 4.41 lbs Localization: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States - Camera
Type: Color - Day&Night - multi-sensor - outdoor - tamper-resistant / weatherproof Digital Video Format: H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080p Exposure Range: 1/5 sec - 1/28000 sec Minimum Illumination: 0.14 lux - color - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 49 ft Digital Video Capture Resolution: 1920 x 1080, 320 x 180 Frame Rate (max): 30 frames per second RAM: 2 GB Flash Memory: 8 GB Features: IR Corrected lens, remote zoom, remote focus, infrared-cut filter, auto IR control, -5° / +95° rotation, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 55 dB signal-to-noise ratio, Forensic WDR, 2D Digital Noise Reduction Technology, 3D Digital Noise Reduction Technology, saturation control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, exposure zone, defogging, barrel distortion correction, compression, rotation mode, Corridor mode, image mirror, image overlay, text overlay, dynamic text overlay, polygon privacy mask, Lightfinder technology, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Auto Focus, Pixel Counter Support, scene metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering, tampering alarm, human detection, Vehicle Detection, Line Crossing Detection, object enter area detection, object leave area detection, up to 8 view areas, trigger recording, 802.1x authentication, aluminum alloy/polycarbonate housing, PoE support, 850nm illuminator - Image Sensor
Type: 4x2MP PS RGB CMOS 4 x 1/2.8" - Lens Construction
Type: Vari-focal Optical Zoom: 2.5 x Focal Length: 3.2 mm - 8.1 mm Lens Iris: F/1.9-3.2 fixed iris Min Focus Distance: 1.6 ft Horizontal Field of View (degree): 40 - 108 Vertical Field of View (degree): 23 - 55 Diagonal Field of View (degree): 46 - 131 - Panning
Range (degree): -90 to +90 - Tilting
Range (degree): 25 to 95 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Mounting bracket, cable conduit adapter plate (1/2"/M20) TAA Compliant: Yes Compliant Standards: IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907, IP66, IP67, IK09 Color: White, NCS S 1002-B - Power
Power Requirements: PoE Plus Class 4 Power Device: 12.2 Watt - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02633-001 |
| MFG Part# | 02633-001 |
| UPC | 7331021080621 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network panoramic camera |
| Optical Zoom | 2.5 x |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Type | Vari-focal |
| Color | NCS S 1002-B, White |
| Focus Adjustment | (min distance 1.6 ft) |
| Digital Video Format | AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Digital Video Capture Resolution | 1920 x 1080, 320 x 180 |
| Focal Length | 3.2 mm - 8.1 mm |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
