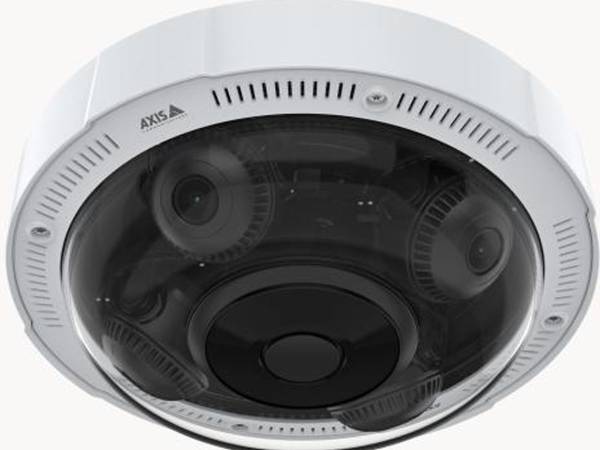

AXIS P3738-PLE 7369651
SKU
7369651
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P37 Series P3738-PLE - network panoramic camera - dome - TAA Compliant Device Type: Network panoramic camera - fixed - dome - outdoor - vandal / weatherproof Audio: Yes: two-way audio capability Dimensions (WxDxH): 10 in x 10 in x 3.6 in Weight: 4.41 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 2.5 x Max Resolution: 3840 x 2160 Frame Rate (max): 15 frames per second Motion Detection: Yes Optical Sensor Type: PS RGB CMOS - 4 x 1/2.8" - 4x2MP Minimum Illumination: 0.19 lux - color - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Focal Length Control: Vari-focal Focal Length: 3.2 mm - 8.1 mm Focus Adjustment: (min distance 19.7 in) Lens Iris: F/1.9-3.2 - fixed iris Panning Range (degree): -90 to +90 Tilting Range (degree): 25 to 95 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Voltage: PoE Plus Class 4 Features: IR Corrected lens, remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 90° image rotation, barrel distortion correction, brightness control, compression, contrast control, CorridorView, day/night threshold, dynamic text overlay, exposure mode, exposure zone, Forensic WDR, image mirror, image overlay, low latency mode, polygon privacy mask, Privacy Mask Function, saturation control, sharpness control, text overlay, tone mapping, video streaming indicator, white balance, Lightfinder technology, OptimizedIR, full duplex audio, half duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, TPM 2.0 module, secure keystore, signed video, secure boot, aluminum housing, plastic housing, polycarbonate bubble, NAS-Ready TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 122 °F; 10 - 100% (non-condensing) relative humidity - General
Device Type: Network panoramic camera Audio Support: Yes: two-way audio capability Form Factor: Dome Connectivity Technology: Wired Width: 10 in Depth: 10 in Height: 3.6 in Weight: 4.41 lbs Localization: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - outdoor - vandal / weatherproof Digital Video Format: H.264, H.265, MJPEG, AVC, HEVC, MPEG-4 Part 10, MPEG-H Part 2 Max Digital Video Resolution: 3840 x 2160 Motion Detection: Yes Exposure Range: 2 sec - 1/16000 sec Minimum Illumination: 0.19 lux - color - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 49 ft Digital Video Capture Resolution: 3840 x 2160, 320 x 180 Frame Rate (max): 15 frames per second RAM: 4 GB Flash Memory: 8 GB Features: IR Corrected lens, remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 90° image rotation, barrel distortion correction, brightness control, compression, contrast control, CorridorView, day/night threshold, dynamic text overlay, exposure mode, exposure zone, Forensic WDR, image mirror, image overlay, low latency mode, polygon privacy mask, Privacy Mask Function, saturation control, sharpness control, text overlay, tone mapping, video streaming indicator, white balance, Lightfinder technology, OptimizedIR, full duplex audio, half duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, TPM 2.0 module, secure keystore, signed video, secure boot, aluminum housing, plastic housing, polycarbonate bubble, NAS-Ready - Image Sensor
Type: 4x2MP PS RGB CMOS 4 x 1/2.8" - Lens Construction
Type: Vari-focal Optical Zoom: 2.5 x Focal Length: 3.2 mm - 8.1 mm Lens Iris: F/1.9-3.2 fixed iris Min Focus Distance: 19.7 in Horizontal Field of View (degree): 40 - 108 Vertical Field of View (degree): 23 - 55 Diagonal Field of View (degree): 46 - 131 - Panning
Range (degree): -90 to +90 - Tilting
Range (degree): 25 to 95 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: EAP-TLS, FIPS 140-2 Level 2, 256-bit AES-XTS, TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Connector guard, cable gaskets TAA Compliant: Yes Compliant Standards: IEEE 802.1ar, IEEE 802.1x, CSA, UL, cUL, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP67, IEC/EN 60529 IP66, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, Common Criteria EAL4+, EAL 6+, IEEE 802.3at, PVC-free, BFR-free, CFR free, JEDEC, ECA, EN 63000:2018, REACH 1907/2006/CE, RoHS 2011/65/EU Color: White, NCS S 1002-B - Power
Power Requirements: PoE Plus Class 4 - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 100% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02635-001 |
| MFG Part# | 02635-001 |
| UPC | 7331021080645 |
| Max Resolution | 3840 x 2160 |
| Device Type | Network panoramic camera |
| Optical Zoom | 2.5 x |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Type | Vari-focal |
| Color | NCS S 1002-B, White |
| Focus Adjustment | (min distance 19.7 in) |
| Digital Video Format | AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Digital Video Capture Resolution | 320 x 180, 3840 x 2160 |
| Focal Length | 3.2 mm - 8.1 mm |
| Encryption Algorithm | 256-bit AES-XTS, EAP-TLS, FIPS 140-2 Level 2, TLS 1.2, TLS 1.3 |
