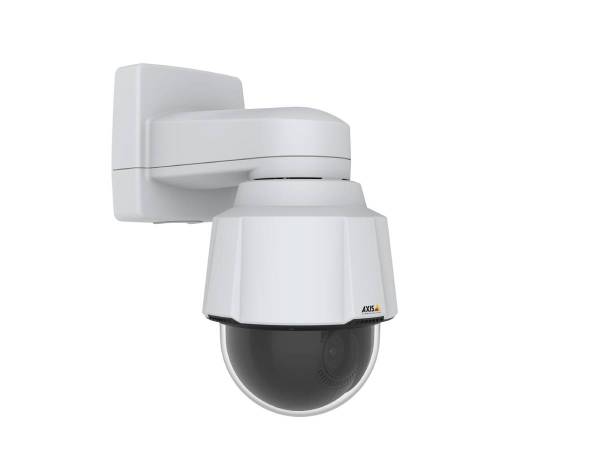

AXIS P5654-E MK II 60 HZ 7441936
SKU
7441936
CA$2,350.06
PTZ camera with 77 field of view, continues 360 pan for both indoor and outdoor with 21x optical zoom. HDTV 1080 and 720p @ 60fps in H.264/265, Motion JPEG, Axis Zipstream, Lighfinder 2 and Focus Recall, WDR, Day & Night, IP66, IK10 and NEMA 4X classification. Advanced Gatekeeper, full-size SD-card slot, smoked and clear dome. Mounting brackets and Midspan are not included.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P5654-E MK II - network surveillance camera - TAA Compliant Device Type: Network surveillance camera - pan / tilt / zoom - outdoor - vandal / weatherproof Camera Mount Type: Ceiling mount Dimensions (WxDxH): 7.4 in x 7.4 in x 8.5 in Weight: 5.51 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 21 x Max Resolution: 1920 x 1080 Frame Rate (max): 60 frames per second Motion Detection: Yes Video Modes: 1080/60p Optical Sensor Type: PS RGB CMOS - 1/2.8" Minimum Illumination: 0.1 lux - color - F1.6 - 30 IRE ¦ 0.01 lux - B&W - F1.6 - 30 IRE ¦ 0.11 lux - color - F1.6 - 50 IRE ¦ 0.03 lux - B&W - F1.6 - 50 IRE Focal Length Control: Vari-focal Focal Length: 4 mm - 84.6 mm Focus Adjustment: Automatic Lens Iris: F/1.6-4.5 - auto iris Panning Range (degree): 360 Tilting Range (degree): 180 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: PoE Class 4 Features: Autotracking 2, secure boot, signed firmware, Zipstream technology, Lightfinder 2.0 technology, Forensic WDR, AXIS Object Analytics, People Detection, Vehicle Detection, infrared-cut filter, 256 preset positions, Machine learning processing unit (MLPU), 180° image rotation, 20 individual polygon and mosaic privacy masks, Adaptive Bitrate (ABR), brightness control, compression, contrast control, day/night shift level, defogging, electronic image stabilization, exposure control, image freeze, image overlay, low latency mode, Multi-Bitrate (MBR), programmable exposure zones, saturation control, sharpness control, text overlay, tone mapping, Variable Bitrate (VBR), white balance, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, aluminum housing, polycarbonate bubble TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 122 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network surveillance camera Camera Mount Type: Ceiling mount Connectivity Technology: Wired Width: 7.4 in Depth: 7.4 in Height: 8.5 in Weight: 5.51 lbs - Camera
Type: Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof Digital Video Format: MJPEG, H.264, H.265 Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080/60p Digital Zoom: 12 Exposure Range: 2 sec - 1/66500 sec Minimum Illumination: 0.1 lux - color - F1.6 - 30 IRE ¦ 0.01 lux - B&W - F1.6 - 30 IRE ¦ 0.11 lux - color - F1.6 - 50 IRE ¦ 0.03 lux - B&W - F1.6 - 50 IRE Frame Rate (max): 60 frames per second RAM: 1024 MB Flash Memory: 512 MB Features: Autotracking 2, secure boot, signed firmware, Zipstream technology, Lightfinder 2.0 technology, Forensic WDR, AXIS Object Analytics, People Detection, Vehicle Detection, infrared-cut filter, 256 preset positions, Machine learning processing unit (MLPU), 180° image rotation, 20 individual polygon and mosaic privacy masks, Adaptive Bitrate (ABR), brightness control, compression, contrast control, day/night shift level, defogging, electronic image stabilization, exposure control, image freeze, image overlay, low latency mode, Multi-Bitrate (MBR), programmable exposure zones, saturation control, sharpness control, text overlay, tone mapping, Variable Bitrate (VBR), white balance, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, aluminum housing, polycarbonate bubble - Image Sensor
Type: PS RGB CMOS 1/2.8" - Lens Construction
Type: Vari-focal Optical Zoom: 21 x Focal Length: 4 mm - 84.6 mm Lens Iris: F/1.6-4.5 auto iris Focus Adjustment: Automatic Horizontal Field of View (degree): 3.6 - 77 Vertical Field of View (degree): 2 - 43.1 - Panning
Range (degree): 360 Speed (degree/sec): Up to 350 - Tilting
Range (degree): 180 Speed (degree/sec): Up to 350 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: SD Memory Card, SDXC Memory Card, SDHC Memory Card Encryption Algorithm: EAP-TLS, TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Smoked dome cover, RJ45 push-pull connector, ceiling mount bracket, spring pipe adapter, U-profile pipe adapter TAA Compliant: Yes Compliant Standards: IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, RCM, EAC, CISPR 35, CISPR 32 Class A, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, IEC 62236-4, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, ETSI EN 303 645, EAL 6+, IEC/EN 60529 IP66, NEMA Type 4X, IEC/EN 62262 IK10, IEEE 802.3at, PVC-free, REACH 1907/2006/CE, RoHS 2011/65/EU, EN 63000:2018 Color: White, NCS S 1002-B - Power
Power Requirements: PoE Class 4 Power Device: 8 Watt - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02915-001 |
| MFG Part# | 02915-001 |
| UPC | 7331021086272 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network surveillance camera |
| Optical Zoom | 21 x |
| Connectivity Technology | Wired |
| Type | Vari-focal |
| Color | NCS S 1002-B, White |
| Digital Zoom | 12 |
| Focus Adjustment | Automatic |
| Digital Video Format | H.264, H.265, MJPEG |
| Focal Length | 4 mm - 84.6 mm |
| Encryption Algorithm | EAP-TLS, TLS 1.2, TLS 1.3 |
