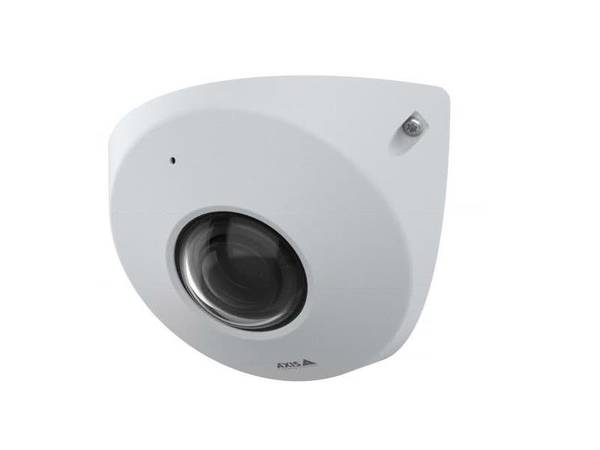

AXIS P9117-PV INDOOR CORNER MOUNTED CAMERA WITH 6 MP SENSOR AND STEREOGRAPHIC LENS, THAT CAN DELIVER MULTIPLE 360 OR 180 PANORAMIC VIEWS AT UP TO 30 7885855
SKU
7885855
CA$1,036.02
AXIS P9117-PV INDOOR CORNER MOUNTED CAMERA WITH 6 MP SENSOR AND STEREOGRAPHIC LENS, THAT CAN DELIVER MULTIPLE 360 OR 180 PANORAMIC VIEWS AT UP TO 30 FPS WITH NO BLIND SPOTS. BUILT ON ARTPEC-8, IT OFFERS POWERFUL ARTIFICIAL INTELLIGENCE AND DEEP LEARNING ANALYTICS ON THE EDGE. INCLUDING AXIS OBJECT ANALYTICS, IT CAN ACCURATELY DETECT AND CLASSIFY MOVING OBJECTS FOR MORE EFFECTIVE MONITORING. THE CAMERA CAN STREAM MULTIPLE, INDIVIDUALLY CONFIGURABLE H.264, H.265 AND MOTION JPEG STREAMS, WITH SUPPORT FOR DIGITAL PTZ. THE PRODUCT AS WELL HAS A IN BUILT MIC SUPPORTING AUDIO ANALYTICS OUT OF THE BOX. HAS AN ELEVATOR DOOR STATE DETECTOR ACAP PRE-INSTALLED. VANDAL-RESISTANT (IK10) AND IP66-RATED DUST PROTECTION. PRODUCT COMES IN WHITE WHILE STEEL VARIANT COVER PURCHASED IN A 4 PACK SEPARATELY.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P91 Series P9117-PV - network panoramic camera - dome - TAA Compliant Device Type: Network panoramic camera - fixed - dome - indoor - dust resistant / vandal resistant Audio: Yes: two-way audio capability, built-in microphone, speaker pairing Camera Mount Type: Corner mount Dimensions (WxDxH): 5.7 in x 4.8 in x 3.6 in Weight: 26.81 oz Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 2160 x 2160 Frame Rate (max): 60 frames per second Motion Detection: Yes Optical Sensor Type: PS RGB CMOS - 1/1.8" - 6 MP Minimum Illumination: 0.17 lux - color - F2.2 - 50 IRE ¦ 0.04 lux - B&W - F2.2 - 50 IRE Focal Length Control: Fixed focal Focal Length: 1.1 mm Focus Adjustment: Fixed focus Lens Iris: F/2.2 - fixed iris Interfaces: Ethernet 10Base-T/100Base-TX Voltage: PoE Plus Class 3 Features: Stereographic lens, IR Corrected lens, infrared-cut filter, 1:1 aspect ratio, 4:3 aspect ratio, 16:9 aspect ratio, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, white balance, day/night threshold, exposure mode, image mirror, dynamic text, image overlay, polygon privacy mask, digital PTZ function, guard tour, auto gain control, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Audio Detection, Pixel Counter Support, digital roll, level grid, Metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, memory card encryption, Lightfinder 2.0 technology TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): 5 °F - 122 °F; 10 - 85% RH (non-condensing) relative humidity - General
Device Type: Network panoramic camera Audio Support: Yes: two-way audio capability, built-in microphone, speaker pairing Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Dome Camera Mount Type: Corner mount Connectivity Technology: Wired Width: 5.7 in Depth: 4.8 in Height: 3.6 in Weight: 26.81 oz Localization: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - indoor - dust resistant / vandal resistant Digital Video Format: H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC Max Digital Video Resolution: 2160 x 2160 Motion Detection: Yes Exposure Range: 1/5 sec - 1/33500 sec Minimum Illumination: 0.17 lux - color - F2.2 - 50 IRE ¦ 0.04 lux - B&W - F2.2 - 50 IRE Digital Video Capture Resolution: 2160 x 2160, 160 x 160, 2048 x 1536, 320 x 240, 2048 x 1152, 256 x 144 Frame Rate (max): 60 frames per second RAM: 2 GB Flash Memory: 8 GB Features: Stereographic lens, IR Corrected lens, infrared-cut filter, 1:1 aspect ratio, 4:3 aspect ratio, 16:9 aspect ratio, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, white balance, day/night threshold, exposure mode, image mirror, dynamic text, image overlay, polygon privacy mask, digital PTZ function, guard tour, auto gain control, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Audio Detection, Pixel Counter Support, digital roll, level grid, Metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, memory card encryption, Lightfinder 2.0 technology - Image Sensor
Type: 6 MP PS RGB CMOS 1/1.8" - Lens Construction
Type: Fixed focal Focal Length: 1.1 mm Lens Iris: F/2.2 fixed iris Focus Adjustment: Fixed focus - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, DHCPv4, DHCPv6, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, SIP - Expansion / Connectivity
Ports: LAN - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3, 256-bit AES-XTS-Plain64 - Miscellaneous
Included Accessories: RJ-45 tool mounting, screw gaskets, cable gasket, owner authentication key TAA Compliant: Yes Compliant Standards: IEEE 802.1x, IEEE 802.1ar, BIS, ICES, KC, RCM, UKCA, UL, cUL, WEEE, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC/EN/UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, IS 13252, IEC/EN 60529 IP66, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907, IEEE 802.1ae Color: White, NCS S 1002-B - Power
Power Requirements: PoE Plus Class 3 Power Device: 3.7 Watt - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Video Motion Detection, AXIS Audio Analytics - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 5 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 85% RH (non-condensing) - Special Feature
COO: CAMBODIA - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02864-001 |
| MFG Part# | 02864-001 |
| UPC | 7331021085510 |
| Max Resolution | 2160 x 2160 |
| Device Type | Network panoramic camera |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Type | Fixed focal |
| Color | NCS S 1002-B, White |
| Focus Adjustment | Fixed focus |
| Digital Video Format | AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Digital Video Capture Resolution | 160 x 160, 2048 x 1152, 2048 x 1536, 2160 x 2160, 256 x 144, 320 x 240 |
| Focal Length | 1.1 mm |
| Encryption Algorithm | 256-bit AES-XTS-Plain64, TLS 1.2, TLS 1.3 |
