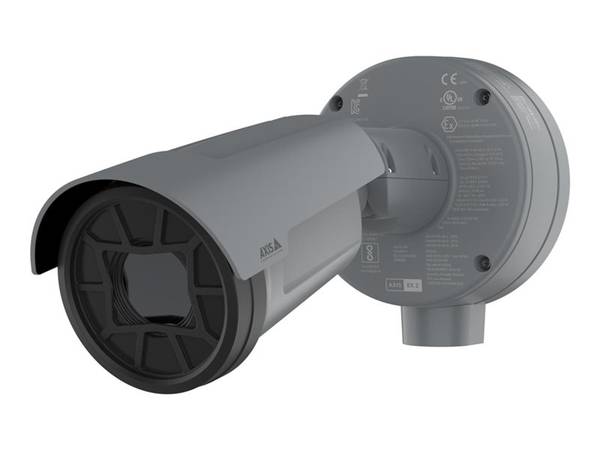

AXIS Q1961-XTE IS AN ARTPEC 8 BASED EXPLOSION-PROTECTED 7885854
SKU
7885854
CA$10,141.03
AXIS Q1961-XTE IS AN ARTPEC 8 BASED EXPLOSION-PROTECTED (ATEX: II 3 G EX EC IIC T4 GC, II 2 D EX TB IIIC 135C DB; IECEX: EX EC IIC T4 GC, EX TB IIIC T135C DB; CULUS: CLASS I DIV 2 GROUP ABCD T4, CLASS II DIV 2 GROUP FG T135C; CLASS III DIV 2, CLASS I ZONE 2 AEX EC IIC T4 GC, ZONE 21 AEX IIIC T135C DB) THERMOMETRIC CAMERA THAT LETS YOU REMOTELY MONITOR TEMPERATURES FROM -40 C TO 350 C (-40 F TO 660 F). IT SUPPORTS UP TO 10 CONFIGURABLE POLYGONAL DETECTION AREAS ALLOWING YOU TO MONITOR FOR SPECIFIC TEMPERATURE LEVELS AND CHANGE RATES. WITH EARLY FIRE DETECTION ANALYTICS (INCLUDED), IT S POSSIBLE TO SET TRIGGERS AND PREVENTIVELY ACT ON EARLY SIGNS OF FIRE. ROBUST AND IMPACT-RESISTANT (IK10 (EXCLUDING FRONT GLASS) AND IP66/67), IT INCLUDES BUILT-IN CYBERSECURITY FEATURES TO HELP SAFEGUARD YOUR SYSTEM. THE PRODUCT IS HALOGEN FREE AND LIGHT WEIGHT. EDGE-TO-EDGE FUNCTIONALITY LETS YOU CONNECT NETWORK SPEAKERS AND OTHER AXIS NETWORK DEVICES.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS Q19 Series Q1961-XTE - thermal network camera - bullet - TAA Compliant Device Type: Thermal network camera - fixed - bullet - outdoor - vandal / weatherproof Audio: Yes: one-way audio capability Dimensions (WxDxH): 6 in x 11.5 in x 6 in Weight: 3.31 lbs Color: Gray, NCS S 5502-B Connectivity Technology: Wired Max Resolution: 768 x 576 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: Uncooled Micro bolometer Focal Length Control: Fixed focal Focal Length: 7 mm Focus Adjustment: Athermalized (min distance 4.3 ft) Lens Iris: F/1.0 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Voltage: DC 10 - 28 V / PoE Class 3 Features: Thermal sensitivity 40 mK (NETD), -40 °C to 350 °C object temperature monitoring, 8 - 14 μm spectral response, spot temperature meter, deep learning processing unit (DLPU), 10 temperature zones detection, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, Zipstream technology, 180° image rotation, 270° image rotation, 90° image rotation, brightness control, compression, contrast control, Corridor mode, electronic image stabilization, exposure zone, image mirror, image overlay, multiple color palettes, polygon privacy mask, sharpness control, text overlay, auto gain control, network speaker pairing, simplex audio, half duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Audio Detection, Pixel Counter Support, early warning fire prevention, active tampering alarm, brute force delay protection, digest authentication, password protection, signed firmware, Axis device ID, Axis Edge Vault, secure boot, secure keystore, signed video, isothermal palette, TPM 2.0 module TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 140 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Thermal network camera Audio Support: Yes: one-way audio capability Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Bullet Connectivity Technology: Wired Width: 6 in Depth: 11.5 in Height: 6 in Weight: 3.31 lbs - Camera
Type: - fixed - outdoor - vandal / weatherproof Digital Video Format: H.264, H.265, MJPEG Max Digital Video Resolution: 768 x 576 Motion Detection: Yes Frame Rate (max): 30 frames per second RAM: 2 GB Flash Memory: 8 GB Features: Thermal sensitivity 40 mK (NETD), -40 °C to 350 °C object temperature monitoring, 8 - 14 μm spectral response, spot temperature meter, deep learning processing unit (DLPU), 10 temperature zones detection, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, Zipstream technology, 180° image rotation, 270° image rotation, 90° image rotation, brightness control, compression, contrast control, Corridor mode, electronic image stabilization, exposure zone, image mirror, image overlay, multiple color palettes, polygon privacy mask, sharpness control, text overlay, auto gain control, network speaker pairing, simplex audio, half duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Audio Detection, Pixel Counter Support, early warning fire prevention, active tampering alarm, brute force delay protection, digest authentication, password protection, signed firmware, Axis device ID, Axis Edge Vault, secure boot, secure keystore, signed video, isothermal palette, TPM 2.0 module - Image Sensor
Type: Uncooled Micro bolometer Effective Pixels: 384 x 288 - Lens Construction
Type: Fixed focal Focal Length: 7 mm Lens Iris: F/1.0 Focus Adjustment: Athermalized Min Focus Distance: 4.3 ft Horizontal Field of View (degree): 55 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: HSTS, HTTPS, NTS, IPv4, IPv6, USGv6, ICMP, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf Alarm Inputs Qty: 1 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: FIPS 140-2 Level 2, TLS 1.2, TLS 1.3, EAP-TLS, PEAP, MSCHAPv2 - Miscellaneous
Included Accessories: Torx L-key, terminal block connectors, connector guard, cable gaskets, owner authentication key TAA Compliant: Yes Compliant Standards: Common Criteria EAL4+, EAL 6+, IEEE 802.1ae, IEEE 802.1ar, IEEE 802.1x, X.509, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA250 Type 4X, IEC/EN 62262 IK10, IECEx, cULus, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 62236-4, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 method B, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, UL/CSA 60079-0, UL/CSA 60079-7, CSA C22.2 60079-31, UL 60079-31, UL 121201, CSA C22.2 No. 213-17, PVC-free, BFR-free, CFR free, JEDEC, ECA, RoHS 2011/65/EU Amendment 2015/863, EN 63000:2018, REACH 2006/1907, ATEX Directive, UL Color: Gray, NCS S 5502-B - Power
Power Requirements: DC 10 - 28 V / PoE Class 3 - Software / System Requirements
Software Included: AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: POLAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02535-001 |
| MFG Part# | 02535-001 |
| Max Resolution | 768 x 576 |
| Device Type | Thermal network camera |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | Fixed focal |
| Color | Gray, NCS S 5502-B |
| Focus Adjustment | Athermalized |
| Digital Video Format | H.264, H.265, MJPEG |
| Focal Length | 7 mm |
| Encryption Algorithm | EAP-TLS, FIPS 140-2 Level 2, MSCHAPv2, PEAP, TLS 1.2, TLS 1.3 |
