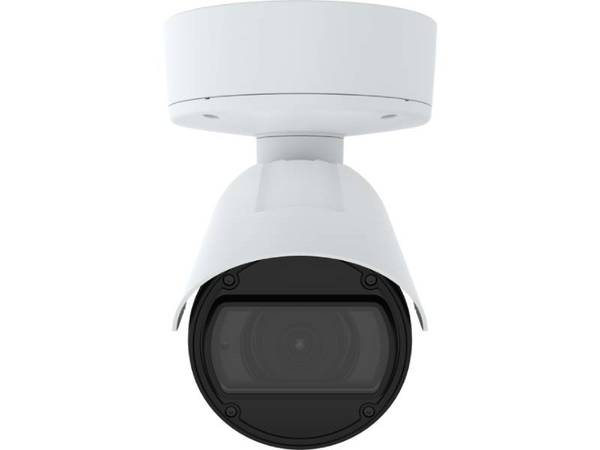

AXIS ROBUST, OUTDOOR, NEMA 4X, IP66, IP67 AND IK10-RATED, 2 MP/1080P RESOLUTION, DAY/NIGHT, FIXED BULLET CAMERA WITH DEEP LEARNING PROCESSING UNIT 7376829
SKU
7376829
CA$2,004.26
ROBUST, OUTDOOR, NEMA 4X, IP66, IP67 AND IK10-RATED, 2 MP/1080P RESOLUTION, DAY/NIGHT, FIXED BULLET CAMERA WITH DEEP LEARNING PROCESSING UNIT (DLPU). SUPPORT FOR FORENSIC WDR AND LIGHTFINDER 2.0 AND OPTIMIZEDIR, A POWER-EFFICIENT 850 NM IR LED TECHNOLOGY
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS Q18 Series Q1805-LE - network surveillance camera - bullet - TAA Compliant Device Type: Network surveillance camera - fixed - bullet - outdoor - weather resistant / impact resistant Audio: Yes: 10-band graphic equalizer, microphone pairing, speaker pairing Dimensions (WxDxH): 7.2 in x 16.2 in x 7.2 in Weight: 7.05 lbs Color: White, NCS S 1002-B, black, NCS S 9000-N Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 32 x Max Resolution: 1920 x 1080 Frame Rate (max): 90 frames per second Motion Detection: Yes Video Modes: 1080p Optical Sensor Type: PS RGB CMOS - 1/2.8" - 2 MP Minimum Illumination: 0.06 lux - color - F1.4 - 50 IRE ¦ 0.01 lux - B&W - F1.4 - 50 IRE ¦ 0 lux - IR Focal Length Control: Vari-focal Focal Length: 4.3 mm - 138 mm Focus Adjustment: Semi-auto (min distance 4 ft) Lens Iris: F/1.4-4.0 - auto iris (P-Iris) Panning Range (degree): -180 to +180 Tilting Range (degree): 0 to -90 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Cables Included: 1 - network cable - external Voltage: DC 10 - 28 V / AC 20 - 24 V / PoE class 6 Features: Lightfinder 2.0 technology, Forensic WDR, Electronic Image Stabilizer (EIS), Zipstream technology, PoE support, secure boot, remote focus, remote zoom, infrared-cut filter, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, removable IR filter, -90° / +270° rotation, deep learning processing unit (DLPU), 20 video streams, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 55 dB signal-to-noise ratio, up to 8 view areas, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, exposure zone, defogging, barrel distortion correction, compression, rotation mode, Corridor mode, image mirror, image overlay, text overlay, dynamic text overlay, polygon privacy mask, digital PTZ function, guard tour, control queue, tour recording, adjustable zoom speed, auto gain control, Object Detection, human detection, face detection, Vehicle Detection, license plate detection, aluminum enclosure, 850nm illuminator, DORI coverage, tampering alarm, 802.1x authentication, Axis Edge Vault TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 140 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: 10-band graphic equalizer, microphone pairing, speaker pairing Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Bullet Connectivity Technology: Wired Width: 7.2 in Depth: 16.2 in Height: 7.2 in Weight: 7.05 lbs Localization: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - outdoor - weather resistant / impact resistant Digital Video Format: H.264, H.265, MJPEG Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080p Exposure Range: 2 sec - 1/37000 sec Minimum Illumination: 0.06 lux - color - F1.4 - 50 IRE ¦ 0.01 lux - B&W - F1.4 - 50 IRE ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 328 ft Digital Video Capture Resolution: 1920 x 1080 Frame Rate (max): 90 frames per second RAM: 2 GB Flash Memory: 8 GB Features: Lightfinder 2.0 technology, Forensic WDR, Electronic Image Stabilizer (EIS), Zipstream technology, PoE support, secure boot, remote focus, remote zoom, infrared-cut filter, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, removable IR filter, -90° / +270° rotation, deep learning processing unit (DLPU), 20 video streams, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 55 dB signal-to-noise ratio, up to 8 view areas, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, exposure zone, defogging, barrel distortion correction, compression, rotation mode, Corridor mode, image mirror, image overlay, text overlay, dynamic text overlay, polygon privacy mask, digital PTZ function, guard tour, control queue, tour recording, adjustable zoom speed, auto gain control, Object Detection, human detection, face detection, Vehicle Detection, license plate detection, aluminum enclosure, 850nm illuminator, DORI coverage, tampering alarm, 802.1x authentication, Axis Edge Vault - Image Sensor
Type: 2 MP PS RGB CMOS 1/2.8" - Lens Construction
Type: Vari-focal Optical Zoom: 32 x Focal Length: 4.3 mm - 138 mm Lens Iris: F/1.4-4.0 auto iris (P-Iris) Focus Adjustment: Semi-auto Min Focus Distance: 4 ft Horizontal Field of View (degree): 2.3 - 60 Vertical Field of View (degree): 1.3 - 39 - Panning
Range (degree): -180 to +180 - Tilting
Range (degree): 0 to -90 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTPS, HTTP, FTP, HTTP/2, TLS, QOS, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, DHCPv4, DHCPv6, SSH, LLDP, CDP, MQTT, Syslog - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ LAN (PoE output) - RJ-45 ¦ 4-pin 2.5 mm - terminal block ¦ Audio line-in/microphone - 3.5 mm jack Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: FIPS 140-2 Level 2, EAP-TLS, TLS - Miscellaneous
Included Accessories: Terminal block connector, connector guard, cable gaskets, owner authentication key Cables Included: 1 x network cable - external TAA Compliant: Yes Compliant Standards: IK10, IK08, IP66, IP67, BFR-free, CFR free, FIPS 140, UL, cUL, BIS, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, ETSI EN 303 645, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, PVC-free, JEDEC, ECA, EU RoHS, Directive 2011/65/EU, EN 63000:2018, REACH 1907/2006/CE, IEEE 802.1ar Color: White, NCS S 1002-B, black, NCS S 9000-N - Power
Power Requirements: DC 10 - 28 V / AC 20 - 24 V / PoE class 6 Power Device: 11 Watt - Software / System Requirements
Software Included: AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02504-001 |
| MFG Part# | 02504-001 |
| UPC | 7331021078482 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network surveillance camera |
| Optical Zoom | 32 x |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | Vari-focal |
| Color | black, NCS S 1002-B, NCS S 9000-N, White |
| Focus Adjustment | Semi-auto |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 1920 x 1080 |
| Focal Length | 4.3 mm - 138 mm |
| Encryption Algorithm | EAP-TLS, FIPS 140-2 Level 2, TLS |
