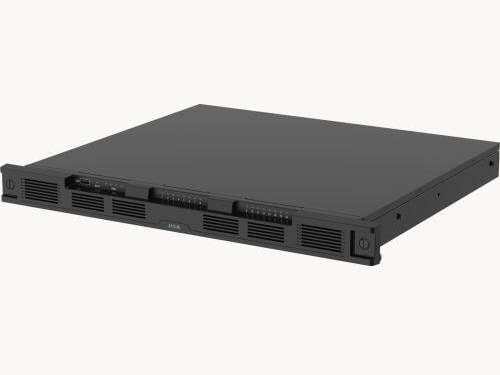

AXIS S3016 32 TB RECORDER IS A 1U RACK RECORDER WITH AN INTEGRATED POE SWITCH AND HIGH POWER BUDGET FOR UP TO 16 DEVICES 7376835
SKU
7376835
CA$5,752.21
AXIS S3016 32 TB RECORDER IS A 1U RACK RECORDER WITH AN INTEGRATED POE SWITCH AND HIGH POWER BUDGET FOR UP TO 16 DEVICES AND A MAXIMUM OF POE CLASS 4 PER PORT. IT PROVIDES RELIABLE RECORDING THANKS TO THE FOUR SURVEILLANCE-GRADE HARD DRIVES AND DIFFERENT RAID LEVELS. THIS HIGH-PERFORMANCE RECORDER OFFERS A GIGABIT SWITCH FOR CONNECTING NETWORK DEVICES AND A 2.5 GIGABIT UPLINK FOR VIDEO RECORDINGS IN ULTRA-HIGH DEFINITION AND INCLUDES A 5-YEAR WARRANTY. THE RECORDER CAN BE USED IN SINGLE-SITE, MULTI-SITE SYSTEMS AND FOR EXPANDING STORAGE AND NETWORK IN EXISTING SYSTEMS. IT IS COMPATIBLE WITH BOTH AXIS COMPANION AS WELL AS AXIS CAMERA STATION VIDEO MANAGEMENT SOFTWARE AND MOBILE APP. AXIS S3016 CAN BE INSTALLED IN SERVER RACKS WITH A POST-TO-POST DISTANCE BETWEEN 376MM (14.8IN) AND 499MM (19.6IN). FOR DEEPER SERVER RACKS, AXIS TS3901 RAIL EXTENSIONS CAN BE USED WHEN THE POST-TO-POST DISTANCE IS BETWEEN 499MM (19.6IN) AND 689MM (27.1IN).
Category: DVRs & Security Storage
- Primary Information
Product Description: AXIS S30 Series S3016 - standalone NVR - 16 channels - TAA Compliant Device Type: NVR - 16 channels - networked - rack-mountable - 1U IP Cameras Supported: 16 Compression Format: H.264, H.265, MPEG-H Part 2, HEVC, AAC Hard Drive: 4 x 32 TB Hard Drive(s) Supported: Quantity: 4 Voltage: 100 - 240 V Dimensions (WxDxH): 19.1 in x 15.8 in x 1.7 in Weight: 23.55 lbs Country Kits: United States TAA Compliant: Yes Manufacturer Warranty: 5 years - General
Device Type: NVR - rack-mountable - 1U Video Channels: 16 IP Cameras Supported: 16 Compression Format: H.264, H.265, MPEG-H Part 2, HEVC, AAC Package Content: Rack mount rails, front cover, rubber feet, screws, manual OS Provided: AXIS OS Country Kits: United States TAA Compliant: Yes Compliant Standards: UL/cUL, AS/NZ CISPR 32 Class A, EN 55035 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES-3(A)/NMB-3(A), IRCM, VCCI, FCC Part 15 B Class A, AS/NZS 62368.1: 2018, CAN/CSA-C22.2 No.62368-1, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60529 IP20, NIST SP500-267, ETSI EN 303 645, IEEE 802.3at, IEEE 802.1x, IEEE 802.1ar, FIPS 140-2 Level 2, X.509 Color: Black, NCS S 9000-N Warranty: 5 years - Security DVR
Networked: Yes Features: Recording data rate up to 256 Mbps - Hard Drive
Quantity Installed: 4 Quantity Supported: 4 Capacity: 32 TB - Networking
Network Interfaces: Ethernet 2.5GBase-T, Ethernet 10Base-T/100Base-TX/1000Base-T, LAN Supported Protocols: IPv4, IPv6, USGv6, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, SFTP, SMTP, MDNS, Bonjour, UPnP, DNS, DNSv6, NTP, NTS, RTSP, TCP, UDP, IGMP, IGMPv2, IGMPv3, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP Features: Default RAID 5, 802.1x authentication, event notification, password protection, signed firmware, digest authentication, AES encryption, secure boot, secure keystore, Axis device ID, Axis Edge Vault, Trusted Platform Module 2.0 (TPM 2.0), hot swappable - Connections
Network Port: 10/100/1000Base-T x 16 (PoE) Other Ports: USB 2.0, SFP, USB 3.0 x 1, RJ-45 x 2 - Power
Voltage: 100 - 240 V Frequency: 50 - 60 Hz Power Consumption: 49 Watt - Dimensions & Weight
Width: 19.1 in Depth: 15.8 in Height: 1.7 in Weight: 23.55 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 85% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161516
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 52161516 |
| Part# | ACI-02352-004 |
| MFG Part# | 02352-004 |
| UPC | 7331021078611 |
| Device Type | NVR - rack-mountable - 1U |
| Color | Black, NCS S 9000-N |
