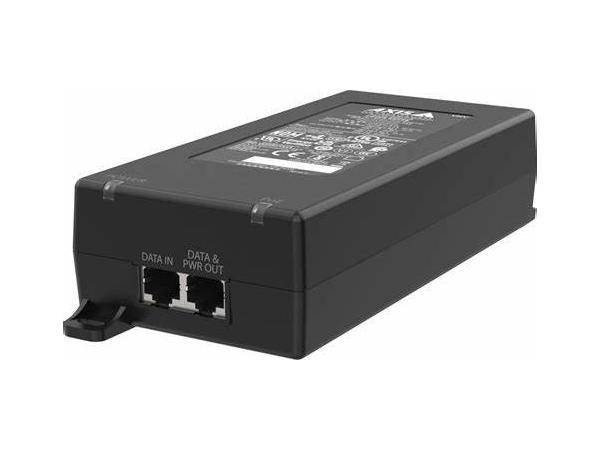

AXIS TU8004 IS A SINGLE PORT 90 W MIDSPAN, COMPLIANT WITH IEEE 802.3BT AND HIGH POE DEVICES. POWER OVER ETHERNET (POE) 7376840

SKU
7376840
main product photo
CA$289.09
AXIS TU8004 IS A SINGLE PORT 90 W MIDSPAN, COMPLIANT WITH IEEE 802.3BT AND HIGH POE DEVICES. POWER OVER ETHERNET (POE) OFFERS AN EASY, FAST AND COST-EFFECTIVE SOLUTION FOR POWERING NETWORK PRODUCTS.





buy now pay later
Category: Power Adapters
  • Primary Information
    Product Description: AXIS TU8004 - PoE injector - midspan - 90 Watt
    Device Type: PoE injector - DIN rail mountable / external
    Power Over Ethernet (PoE): PoE
    Weight: 17.64 oz
    Input Voltage: AC 100-240 V
    Output Voltage: DC 57 V
    Power Capacity: 90 Watt
    Output connectors: 1 x RJ-45
    Color: Black
    Dimensions (WxDxH): 6.5 in x 3.1 in x 1.7 in
    Manufacturer Warranty: 3-year warranty
    Designed For: AXIS C1410, P1385-E
  • General
    Device Type: PoE injector - DIN rail mountable / external
    Power Over Ethernet (PoE): PoE (IEEE 802.3af)
    Color: Black
  • Power Device
    Input Voltage: AC 100-240 V
    Frequency Required: 50 - 60 Hz
    Power Output Connectors Details: 1 x RJ-45
    Output Voltage: DC 57 V
    Power Capacity: 90 Watt
  • Expansion / Connectivity
    Interfaces: 1 x Gigabit LAN - RJ-45
  • Miscellaneous
    Features: LED indicators, wall mountable
    Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, CCC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, Halogen-free, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class B, RCM, EN 55032 Class B, AS/NZS CISPR 32 Class B, EN 55035, IEC/EN/UL 62368-1, PVC-free, FCC Part 15 Subpart B Class B, IS 13252
  • Manufacturer Warranty
    Service & Support: Limited warranty - 3 years
  • Environmental Parameters
    Min Operating Temperature: -4 °F
    Max Operating Temperature: 149 °F
    Humidity Range Operating: 10 - 90% RH (non-condensing)
  • Dimensions & Weight
    Width: 6.5 in
    Depth: 3.1 in
    Height: 1.7 in
    Weight: 17.64 oz
  • Compatibility Information
    Designed For: AXIS C1410, P1385-E
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121006
More Information
BRANDS AXIS COMMUNICATIONS
UNSPSC 39121006
Part# ACI-02783-001
MFG Part# 02783-001
UPC 7331021085367
Device Type PoE injector - DIN rail mountable / external
Color Black
