AXIS XC1311 7968314
SKU
7968314
CA$3,765.86

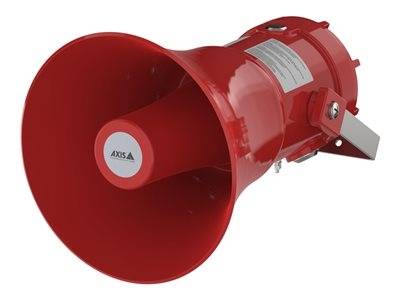

AXIS XC1311 Explosion-protected Network Horn Speaker is certified for use in hazardous locations (ATEX: II 2G Ex d IIC T5 Gb, II 2D Ex tb IIIC T=91 C Db; IECEx: Ex db IIC T5 Gb, Ex tb IIIC T=91 C Db; cULus: Class I Div 1 ABCD T5, Class I Zone 1 AEx db IIC T5 Gb, Zone 21 AEx tb IIIC T=91 C Db). The speaker is a complete audio system in a single unit. It connects to the standard existing network without need for a separate audio network. Built-in memory supports pre-recorded messages, or operators can respond to notifications with live speak. Digital signal processing (DSP) ensures clear sound. Open standards support easy integration with network video, access control, analytics, and VoIP (supporting SIP).
Category: Speakers
- Primary Information
Product Description: Axis XC1311 - IP speaker - for PA system Product Type: IP speaker - for PA system Features: DSP Integrated Memory: Flash - 1024 MB Protection: Impact protection, dustproof, water-resistant Enclosure Design: Horn Speaker Type: Active Frequency Response: 280 - 12500 Hz Amplifier Output Power: 7W - D Amplifier: Integrated Interfaces: Ethernet, Fast Ethernet, PoE Audio Formats: AAC-LC, G.711, PCM, G.726, ADPCM, U-LAW, WAV, MP3 Color: RAL 3000 Dimensions (WxDxH): 13.2 in Dimensions - Diameter: 8.7 in Weight: 9.3 lbs Manufacturer Warranty: 5-year warranty - General
Product Type: IP speaker - for PA system Features: DSP, AXIS Audio Manager Edge Integrated Memory: Flash - 1024 MB Protection: Impact protection, dustproof, water-resistant Enclosure Color: RAL 3000 Enclosure Design: Horn Enclosure Material: Aluminum Design Features: Swivel design - Speaker System
Speaker Type: Active Frequency Response: 280 - 12500 Hz Max Output Level (Max SPL): 110 dB Maximum Sampling Rate Supported: 48 kHz Amplifier: Integrated Amplifier Class: D Amplifier Output Power: 7W Coverage: 100° x 70° Interfaces: IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet) VoIP Protocols: SRTP, SIP over TLS Voice Codecs: G.711u-law, G.726 Network Protocols: IPv4, IPv6, ICMP, HTTP, HTTPS, TLS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, UPnP, SNMPv3, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, DHCP, ARP, SSH, Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), IEEE 802.1x, SNMP Audio Formats: AAC-LC, G.711, PCM, G.726, ADPCM, U-LAW, WAV, MP3 - Speaker System Details
Driver Details: Speaker: full-range driver - 2.5" - dynamic cone - Connections
Connector Type: LAN (RJ-45) - Miscellaneous
Included Accessories: Terminal block, ring terminal connector, AVHS authentication key Compliant Standards: UL Class I Division 1, ATEX/IECEx Zone 1, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, AN/CSA-C22.2 No. 62368-1 (Canada), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IP66, IP67, NEMA 250 Type 4X, NIST SP500-267, IEEE 802.3af Class 3 - Power
Power Source: Power over Ethernet (PoE) Power Consumption Operational: 7 Watt - Dimensions & Weight
Diameter: 8.7 in Depth: 13.2 in Weight: 9.3 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Min Storage Temperature: -40 °F Max Storage Temperature: 149 °F Humidity Range Operating: 10 - 100% RH (condensing) Humidity Range Storage: 5 - 95% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161512
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 52161512 |
| Part# | ACI-02962-001 |
| MFG Part# | 02962-001 |
| UPC | 7331021086852 |
| Product Type | IP speaker - for PA system |
| Color | RAL 3000 |
