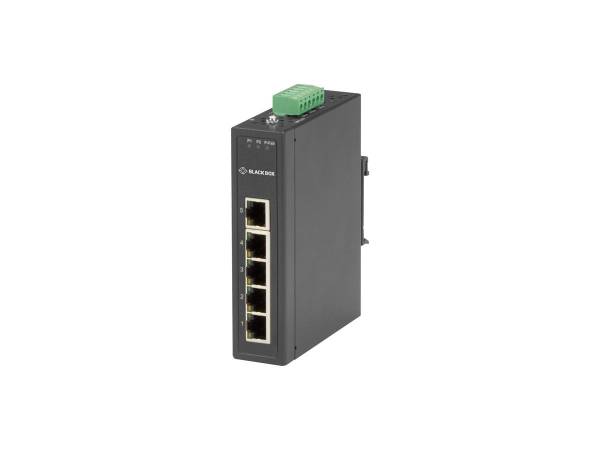

BLACK BOX CORP 5P FAST ETH IND SWITCH 6480763
SKU
6480763
CA$166.14
Fast Ethernet (100-Mbps) Extreme Temperature Switch - (5) 10/100-Mbps Copper RJ45, 12-48V DC-Power
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: LBH3050A Connectivity Technology: Wired Data Transfer Rate: 100 Mbps Networking / Ports Qty: 5 Data Link Protocol: Fast Ethernet Power / Device Type: Power Supply Power Consumption Operational: 2.88 Watt Power / Voltage Required: 12 to 48 VDC Features: Features four 10/100-Mbps switch ports and one 10/100/100-Mbps uplink port. Withstands extreme temperatures between -40 and +167 F (-40 to +75 C) and has an IP 30 enclosure. Supports redundant 12-48 VDC input power and a P-Fail relay. Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories. Features broadcast storm protection. Mounts on a DIN rail or the wall. Includes panel mount kit. - Interfaces / Ports
Interfaces: (5) RJ-45, (1) 6-pin removable screw terminal (power and relay) - Network
Interfaces: (5) RJ-45, (1) 6-pin removable screw terminal (power and relay) - Dimensions&Miscellaneous
Width: 1.18 Inch Depth: 3.74 Inch Height: 4.72 Inch Weight: 1 lbs. - Service&Support
Service & Support Type: 1 Year Double Diamond Warranty (Standard) - Special Feature
Min Operating Temperature: -40 Celsius Max Operating Temperature: 75 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 85 Celsius COO: CHINA - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43222612 |
| Part# | BBC-LBH3050A |
| MFG Part# | LBH3050A |
| UPC | 822088130772 |
| Network Device Type | Switch |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Networking / Ports Qty | 5 |
| Data Link Protocol | Fast Ethernet |
| Power / Device Type | Power Supply |
