BLACK BOX CORP 8 PORT INDUSTRIALETHERNET FAST SWITCH E 6318066
SKU
6318066
CA$212.10

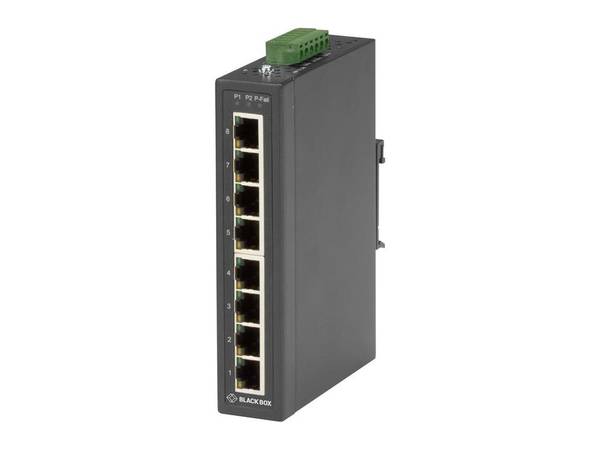

Fast Ethernet (100-Mbps) Extreme Temperature Switch - (8) 10/100-Mbps Copper RJ45, 12-48V DC-Power
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: LBH3080A Connectivity Technology: Wired Data Transfer Rate: 100 Mbps Networking / Ports Qty: 8 Data Link Protocol: Fast Ethernet Power / Device Type: Power Supply Power Consumption Operational: 4.71 Watt Power / Voltage Required: 12 to 48 VDC redundant Features: Features eight 10-/100-Mbps RJ-45 switch ports with auto MDI/MDI-X.
Withstands extreme temperatures between -40 and +167 F (-40 to +75 C) and has an IP 30 enclosure.
Supports redundant 12-48 VDC input power and a P-Fail relay.
Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories.
Features broadcast storm protection.
Mounts on a DIN rail or the wall.
Includes panel mount kit. - Interfaces / Ports
Interfaces: (8) RJ-45, (1) 6-pin removable screw terminal (power and relay) - Network
Interfaces: (8) RJ-45, (1) 6-pin removable screw terminal (power and relay) - Dimensions&Miscellaneous
Width: 1.18 Inch Depth: 3.74 Inch Height: 5.51 Inch Weight: 0.45 Kg - Service&Support
Service & Support Type: 1 Year Double Diamond Warranty (Standard) - Special Feature
Min Operating Temperature: -40 Celsius Max Operating Temperature: +75 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: +85 Celsius COO: CHINA - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43222612 |
| Part# | BBC-LBH3080A |
| MFG Part# | LBH3080A |
| UPC | 822088132332 |
| Network Device Type | Switch |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Networking / Ports Qty | 8 |
| Data Link Protocol | Fast Ethernet |
| Power / Device Type | Power Supply |
