BLACK BOX CORP CONVERTER SWITCH, 10-/100 LBH2001A-H-LX 5784518
SKU
5784518
CA$1,137.46

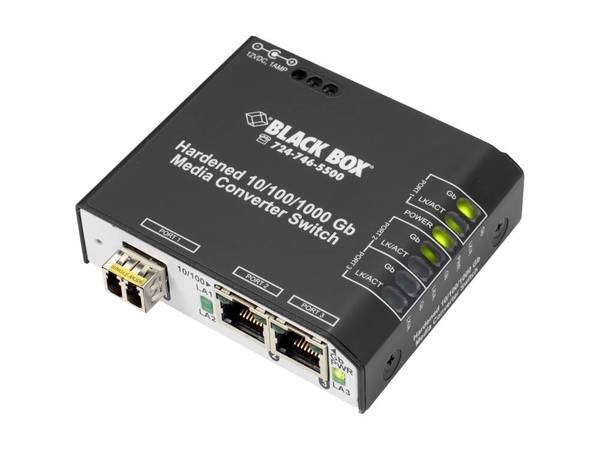

Gigabit Ethernet Hardened Temperature Switch(2)10/100/1000-Mbps Copper RJ45,(1)1000-Mbps Singlemode Fiber,1310nm,15km,LC,GSA,TAA
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: LBH150A-ST Form Factor: Wall-mount Connectivity Technology: Wired Data Transfer Rate: 1 Gbps Networking / Ports Qty: 3 Data Link Protocol: Gigabit Ethernet Networking Compliant Standards: IEEE 802.3, IEEE 802.3u/ab, IEEE 802.1p, 1000BASE-TX, 1000BASE-LX, IEEE 802.1q VLANs Power / Device Type: Power Supply Power / Installed Qty: 1 Power Consumption Operational: 4 Watt Max Power Consumption: 5 Watt Power / Voltage Required: 100-240-VAC For Use With: Black Features: Switch traffic between a Gigabit-speed fiber single-mode backbone and two copper Gigabit segments or use the second copper port to provide access to other Ethernet devices Supports extended distances up to 10 kilometers (6.2 mi.) on single-mode fiber Features high-grade components and special thermal design for industrial use Robust steel case protects circuitry and coSMunications from demands of factory applications - Interfaces / Ports
Interfaces: (2)10/100/1000-Mbps Copper RJ45,(1)1000-Mbps Singlemode Fiber 10/100BASE-T Ports: 5 - Network
10/100BASE-T Ports: 5 Interfaces: (2)10/100/1000-Mbps Copper RJ45,(1)1000-Mbps Singlemode Fiber - Dimensions&Miscellaneous
Width: 3 Inch Depth: 3.6 Inch Height: 1.7 Inch Weight: 0.8 lbs. - Service&Support
Service & Support Type: 3 Years Warranty - Special Feature
Min Operating Temperature: -25 Max Operating Temperature: 60 C RoHS: Y COO: UNITED STATES - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43222612 |
| Part# | BBX-LBH2001A-H-LX |
| MFG Part# | LBH2001A-H-LX |
| UPC | 822088105565 |
| Network Device Type | Switch |
| Power / Installed Qty | 1 |
| 10/100BASE-T Ports | 5 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | Wall-mount |
| Networking / Ports Qty | 3 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
