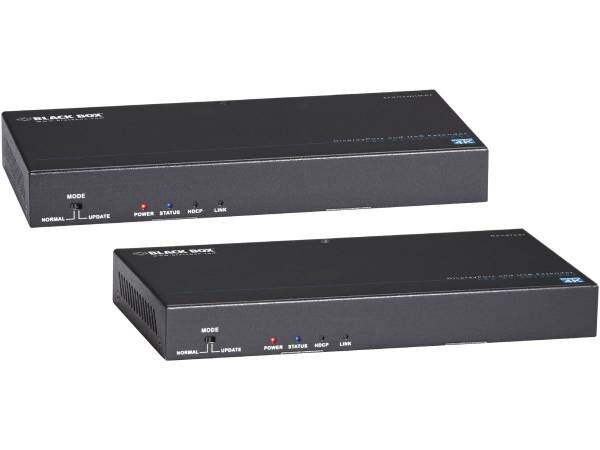

BLACK BOX CORP EXTEND KEYBOARD, MOUSE OR PERIPHERALS. 6171749
SKU
6171749
CA$759.20
Category: Repeaters & Transceivers
- Primary Information
Device Type: Video Extender Data Transfer Rate: 10.2 Gbps Max Transfer Distance: 100 M Interfaces: Transmitter: (1) 12-VDC Barrel; (1) CATx OUT; (1) 3-pin Phoenix Connector; (1) DisplayPort IN; (1) Audio IN; (1) Audio OUT; (1) USB Type-B; Receiver: (1) 12-VDC Barrel; (1) CATx IN; (1) 3-pin Phoenix Connector; (1) DisplayPort OUT; (1) Audio IN Features: USB 2.0 passthrough; Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter; HDCP 2.2 compliant and supports EDID transmission; Extend your signals as far as 100m over CAT6A/CAT7 cables What's Included: (1) DisplayPort Transmitter (1) DisplayPort Receiver (1) 12-VDC, 2-A Power Supply with US, EU, UK, and AU Power Clips (2) 3.5-mm, 2-pin Male Phoenix Connectors (2) Mounting Brackets User Manual - Networking
Data Link Protocol: Gigabit Ethernet - Dimensions&Miscellaneous
Width: 7.91 Inch Depth: 3.95 Inch Height: 0.99 Inch - Service&Support
Service & Support Type: Extended Double Diamond Warranty Available (3 Additional Years) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43222608 |
| Part# | BBC-UVX-DP-TP-100M |
| MFG Part# | UVX-DP-TP-100M |
| UPC | 822088125549 |
| Max Transfer Distance | 100 M |
| Device Type | Video Extender |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | Gigabit Ethernet |
