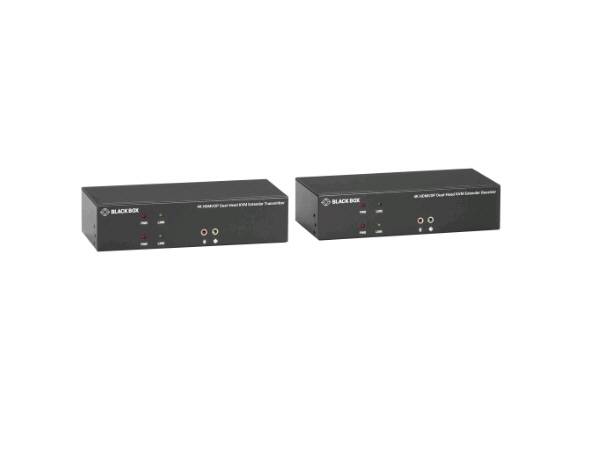

BLACK BOX CORP KVX HDMI/DISPLAYPORT FIBER KVM EXT 6886197
SKU
6886197
CA$1,718.49
KVM Extender Kit over Fiber-Dual-Monitor,HDMI/DisplayPort 4K30,USB 2.0,Audio,Serial,Local Video Out,SFP Port,GSA,TAA
Category: KVM Switch & AV Splitters
- Primary Information
Device Type: KVM Extender Connectivity Technology: Wired Interfaces: Host connection: Video Input: (1) HDMI female; (1) DisplayPort (Female); Serial Control Port: (1) DB9 (Female); Link Port: (1) SFP Cage; USB: (1) USB Type-B (Female); Audio: (1) Line In; (1) Line Out; Local Video Output: (1) HDMI (Female); (1) DisplayPort (Female); Console connection: Video Output: (2) HDMI (Female); Serial Control Port: (1) DB9 (Male) Link Port: (1) SFP Cage; USB 2.0: (4) USB Type-A (Female); Audio: (1) Mic In; (1) Speaker Out Connections: USB Max Resolution (external): 3840x2160 Data Link Protocol: USB Width: 7.15 Inch Depth: 3.25 Inch Height: 1.1 Inch Service & Support Type: Double Diamond Warranty (Standard) Model: KVXLCHDP-200 What's Included: (1) Transmitter (1) Receiver (2) 5V, 2A Power Supplies (Includes US, EU, AU & UK Plug types) (1) HDMI Cables 1.2m (4 ft.) (1) DisplayPort Cables 1.2m (4 ft.) (1) 3.5mm Audio Cable 1.8m (6 ft.) (1) USB-B to USB-A Cable 1.8m (6 ft.) Features: DisplayPort or HDMI Dual Head 4K transmission up to 30 km over singlemode cable Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz Transparent USB 2.0 extension supports HID devices, mass storage devices Supports RS-232 peripheral (serial) devices Bi-directional audio via speaker/mic connection Local video port loopback for monitoring on transmitter (TX) unit - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43211604 |
| Part# | BBX-KVXLCHDPF-200 |
| MFG Part# | KVXLCHDPF-200 |
| UPC | 822088148159 |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
| Data Link Protocol | USB |
