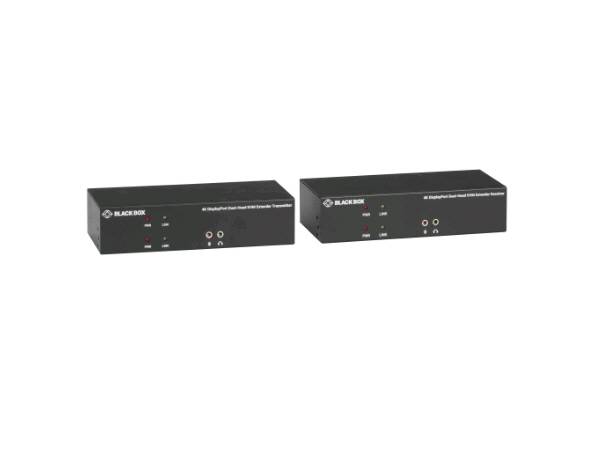

BLACK BOX CORP KVX SERIES DISPLAYPORT FIBER KVM EXTENDER, DH, TX+RX 6782408
SKU
6782408
CA$2,137.60
KVM Extender Kit over Fiber-Dual-Monitor, DisplayPort 4K30, USB2.0, Audio, Serial, Local Video Out, SFP Port, GSA, TAA
Category: KVM Switch & AV Splitters
- Primary Information
Device Type: KVM Extender Connectivity Technology: Wired Interfaces: TRANSMITTER Host connection: Video Input: (2) DisplayPort female; Serial Control Port: (1) DB9 female; Link Port: (2) SFP cage; USB: (1) USB Type-B female; Audio: (1) Line in; (1) Line out; Local Video Output: (2) DisplayPort female RECEIVER Console connection: ; Video Output: (2) DisplayPort female; Serial Control Port: (1) DB9 male; Link Port: (2) SFP cage; USB: (4) USB Type-A female; Audio: (1) Mic In; (1) Speaker Out Connections: USB Max Resolution (external): 3840x2160 Data Link Protocol: USB Width: 3.27 Inch Depth: 7.09 Inch Height: 0.83 Inch Service & Support Type: 2 Year Double Diamond Warranty (Standard) What's Included: (1) Transmitter (1) Receiver (2) 5V, 2A Power Supplies (includes US, EU, UK plug types) (2) DisplayPort Cables 1.2m (4 ft.) (1) USB Type A To B Cable, M/M 1.8m (6 ft.) (1) 3.5-mm Dual Audio/Mic Cable, M/M 1.8m (6 ft.) (2) Deskmounting brackets (with screws) Features: DisplayPort 4K transmission up to 30 km over singlemode cable Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz Transparent USB 2.0 extension supports HID devices, mass storage devices Supports RS-232 peripheral (serial) devices Bi-directional audio via speaker/mic connection Local video port loopback for monitoring on transmitter (TX) unit - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43211604 |
| Part# | BBC-KVXLCDPF-200 |
| MFG Part# | KVXLCDPF-200 |
| Device Type | KVM Extender |
| Connectivity Technology | Wired |
| Data Link Protocol | USB |
