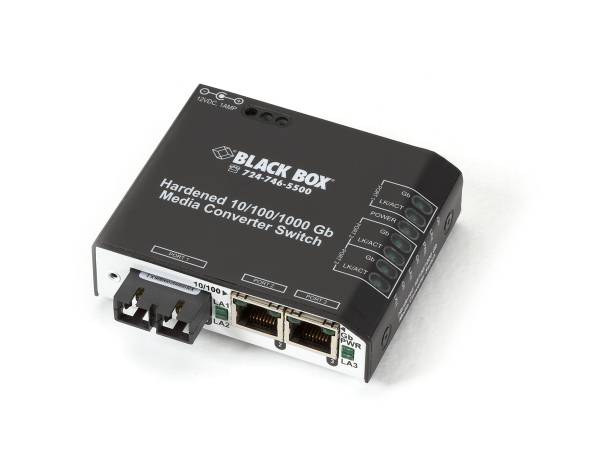

BLACK BOX CORP NVERTER SWITCH, 10-/100 LBH2001A-H-SC-24 5784521
SKU
5784521
CA$760.99
Gigabit Ethernet (1000-Mbps) Hardened Temperature Switch - (2) 10/100/1000-Mbps Copper RJ45, (1) 1000-Mbps Multimode Fiber, 850nm, 550m, SC, 24V DC-Power, GSA, TAA, 45 Day Standard Return Policy
Category: Hubs & Switches
- Primary Information
Product Description: Black Box Hardened Media Converter Switch 24-VDC - fiber media converter - 10Mb LAN, 100Mb LAN, GigE Device Type: Fiber media converter - RJ-45 / SC multi-mode Form Factor: External Cabling Type: 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T Data Transfer Rate: 1 Gbps Optical Wave Length: 850 nm Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Max Transfer Distance: 1800 ft Power: DC 24 V Dimensions (WxDxH): 3 in x 1 in x 3.5 in Weight: 3.53 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Fiber media converter Form Factor: External - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Data Transfer Rate: 1 Gbps Optical Wave Length: 850 nm MAC Address Table Size: 1K entries Max Transfer Distance: 1800 ft Status Indicators: Link OK, receive Features: Full duplex capability, switching Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p - Expansion / Connectivity
Interfaces: 2 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SC multi-mode female x 2 - Miscellaneous
Compliant Standards: Plug and Play, RoHS - Power
Power Device: Internal power supply Voltage Required: DC 24 V - Dimensions & Weight
Width: 3 in Depth: 1 in Height: 3.5 in Weight: 3.53 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% - Special Feature
COO: UNITED STATES - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43222612 |
| Part# | BBX-LBH2001A-H-SC-24 |
| MFG Part# | LBH2001A-H-SC-24 |
| UPC | 822088105626 |
| Max Transfer Distance | 1800 ft |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, GigE |
