BLACK BOX CORP WITCH, HARDENED, (4) CO LBH240A-HD-SC-24 5784537
SKU
5784537
CA$894.62

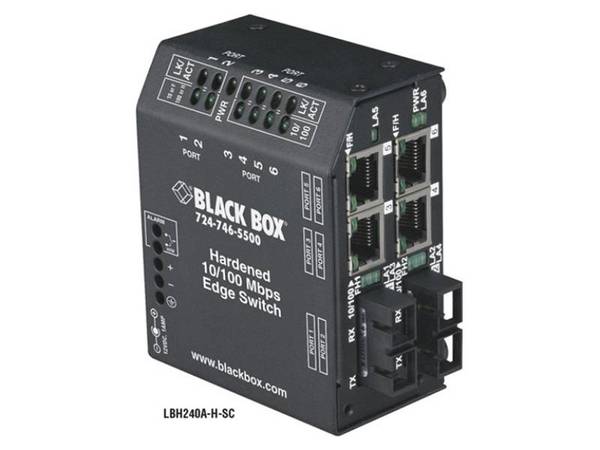

Fast Ethernet Hardened Temperature Switch - (4) 10/100-Mbps Copper RJ45, (2) 100-Mbps Multimode Fiber, 1300nm, 2km, SC, 24V DC-Power, DIN Rail, GSA, TAA
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: LBH240A-HD-SC-24 Form Factor: Wall-mount Connectivity Technology: Wired Data Transfer Rate: 100 Mbps Networking / Ports Qty: 6 Data Link Protocol: Fast Ethernet Networking Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q Power / Device Type: Power Supply Power / Installed Qty: 1 Power Consumption Operational: 7 Watt Max Power Consumption: 9 Watt Power / Voltage Required: 24VDC For Use With: Black Features: Two 100-Mbps fiber ports and 4 10-/100-Mbps RJ45 switch ports. Fiber interfaces are MM, SC, 2km range. Suitable for dusty or dirty environments with a temperature range between -13 and +140 F (-25 to +60 C). 24VDC power input. Includes DIN rail mount kit. - Interfaces / Ports
Interfaces: (4) 10/100-Mbps Copper RJ45, (2) 100-Mbps Multimode Fiber 10/100BASE-T Ports: 4 - Network
10/100BASE-T Ports: 4 Interfaces: (4) 10/100-Mbps Copper RJ45, (2) 100-Mbps Multimode Fiber - Dimensions&Miscellaneous
Width: 3 Inch Depth: 3.6 Inch Height: 1.7 Inch Weight: 0.8 lbs. - Service&Support
Service & Support Type: 3 Years Warranty - Special Feature
Min Operating Temperature: -25 Max Operating Temperature: 60 C Min Storage Temperature: -40 C Max Storage Temperature: 85 C RoHS: Y COO: UNITED STATES - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | BLACKBOX |
|---|---|
| UNSPSC | 43222612 |
| Part# | BBX-LBH240A-HD-SC-24 |
| MFG Part# | LBH240A-HD-SC-24 |
| UPC | 822088105824 |
| Network Device Type | Switch |
| Power / Installed Qty | 1 |
| 10/100BASE-T Ports | 4 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Form Factor | Wall-mount |
| Networking / Ports Qty | 6 |
| Data Link Protocol | Fast Ethernet |
| Power / Device Type | Power Supply |
