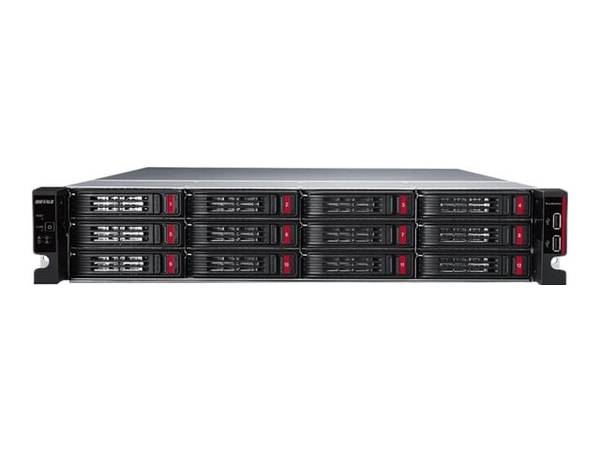

BUFFALO TERASTATION 51220RH 2U RM 120TB 12 BAY NAS (12X10TB) ENTERPRISE HDD INCLUDED 10GBE RAID ISCSI 8191365
SKU
8191365
CA$16,849.76
Only 1 left
TeraStation 51220RH 2U RM 120TB 12 Bay NAS (12x10TB) Enterprise HDD Included 10GBE RAID ISCSI
Category: Network Storages
- Primary Information
Product Description: Buffalo TeraStation TS51220RH Series - NAS server - 120 TB Device Type: NAS server Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet Enclosure Type: Rack-mountable - 2U Total Storage Capacity: 120 TB Storage Capacity Details: RAID 6: 100 TB ¦ RAID 5: 110 TB ¦ RAID 10: 60 TB ¦ RAID 1: 10 TB ¦ RAID 0: 120 TB Max Supported Capacity: 120 TB Installed Devices / Modules Qty: 12 (installed) / 12 (max) Dimensions (WxDxH): 18.9 in x 29 in x 3.5 in Weight: 55.12 lbs () Processor: Annapurna Labs Alpine AL524 2 GHz (Quad-Core) Storage Controller: RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10 Hard Drive: 12 x 10 TB SATA 6Gb/s - hardware encryption, Nearline, RAID 6 - factory configured Networking: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 5GbE, 10GbE RAM: 16 GB Power: AC 100 V (50/60 Hz) Power Redundancy: Yes Storage Operating System: Linux Manufacturer Warranty: 3-year warranty - General
Device Type: NAS server Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet Enclosure Type: Rack-mountable - 2U Total Storage Capacity: 120 TB Storage Capacity Details: RAID 6: 100 TB ¦ RAID 5: 110 TB ¦ RAID 10: 60 TB ¦ RAID 1: 10 TB ¦ RAID 0: 120 TB Max Supported Capacity: 120 TB Installed Devices / Modules Qty: 12 (installed) / 12 (max) Width: 18.9 in Depth: 29 in Height: 3.5 in Weight: 55.12 lbs () Built-in Devices: 2 x 80 mm square double ball bearing fans - Processor / Memory
Processors Installed: Annapurna Labs Alpine AL524 2 GHz Number of Cores: Quad-Core RAM: 16 GB DDR4 Features: ECC - Storage Controller
Type: RAID Interface Type: SATA 6Gb/s RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 - Hard Drive
Type: HDD - hot-swap - 3.5" Capacity: 12 x 10 TB Interface Type: SATA 6Gb/s Data Transfer Rate: 600 MBps Spindle Speed: 7200 rpm Features: Hardware encryption, Nearline, RAID 6 - factory configured - Networking
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 5GbE, 10GbE Network / Transport Protocol: TCP/IP, FTP, SFTP, HTTP, HTTPs, SMB, CIFS, NFS Remote Management Protocol: SNMP, HTTP, HTTPS, SFTP Network Services Compatibility: Microsoft CIFS, Server Message Block (SMB), Network File System (NFS), FTP, SFTP, HTTP, HTTPS Features: Wake on LAN (WOL), Buffalo Web Access Compliant Standards: IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x - Expansion / Connectivity
Expansion Bays: 12 (total) / 0 (free) x hot-swap - 3.5" Interfaces: 2 x Ethernet 10Gb - RJ-45 ¦ 2 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 2.0 - Type A - Miscellaneous
Cables Included: 1 x network cable - 6.6 ft ¦ 1 x 3-pole to 2-pole conversion adapter Features: Redundant power supply, hot spare support, hot-swappable, replication, failover, port trunking / NIC teaming, quota function, collective backup function, Apple Time Machine ready, online storage linkage Compliant Standards: RoHS, VCCI Class A Included Accessories: Rack mounting kit, power cable - Power
Power Device: Internal power supply Installed Qty: 2 Power Redundancy: Yes Voltage Required: AC 100 V (50/60 Hz) - Software / System Requirements
Storage Operating System: Linux Software Included: NovaBACKUP Buffalo Edition - Manufacturer Warranty
Service & Support: Limited warranty - 3 years ¦ Limited warranty - hard drive - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 85% - Special Feature
COO: JAPAN - UNSPSC Code
UNSPSC Code: 71151106
| BRANDS | BUFFALO AMERICAS |
|---|---|
| UNSPSC | 71151106 |
| Part# | BFA-TS51220RH12012 |
| MFG Part# | TS51220RH12012 |
| UPC | 747464135359 |
| Device Type | NAS server |
| Data Transfer Rate | 600 MBps |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 5, RAID 6 |
| Data Link Protocol | 100Mb LAN, 10GbE, 10Mb LAN, 1GbE, 2.5GbE, 5GbE |
| Type | HDD - hot-swap - 3.5" |
| Enclosure Type | Rack-mountable - 2U |
| Remote Management Protocol | HTTP, HTTPS, SFTP, SNMP |
| Interface Type | SATA 6Gb/s |
