C2G 4K HDBASET HDMI RS232 WP TX TO BOX RX 7245799
SKU
7245799
Category: AV Cables
- Primary Information

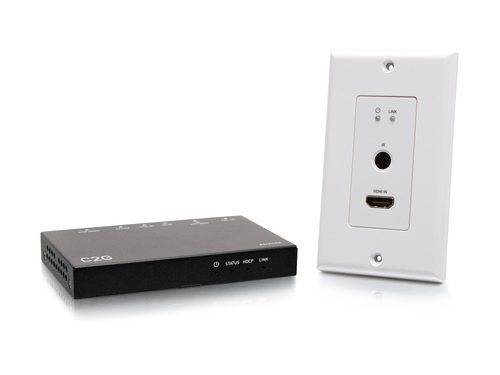

Product Description: C2G HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz - video/audio/serial extender - HDMI, HDBaseT Device Type: Video/audio/serial extender (transmitter) Form Factor: External Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Data Link Protocol: HDMI, HDBaseT Transmission Medium: CAT 6a Max Transfer Distance: 43.5 miles Power: DC 18 V Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Video/audio/serial extender (transmitter) Form Factor: External Color: Multicolor - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Max Resolution: 4K @ 60 Hz Max Transfer Distance: 43.5 miles Status Indicators: Power, HDCP, link Features: 4K resolution support, 8KV ESD Protector, power over HDBaseT (PoH), CEC passthrough, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x network (input) - RJ-45 female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x RS-232 (input) - 3 pin terminal block female ¦ 1 x network (output) - RJ-45 female ¦ 1 x RS-232 (input) - 3 pin terminal block female - Power
Power Device: External power adapter Voltage Required: DC 18 V Power Consumption Operational: 8.88 Watt - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 1.8 in x 4.2 in ¦ Receiver: 4.3 in x 25.3 in x 0.6 in / 6.3 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 26121620
| BRANDS | C2G |
|---|---|
| UNSPSC | 26121620 |
| Part# | CTG-C2G30025 |
| MFG Part# | C2G30025 |
| UPC | 757120300250 |
| Max Transfer Distance | 43.5 miles |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/serial extender (transmitter) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT, HDMI |
| Color | Multicolor |
| Frequency Band | 340 MHz |
