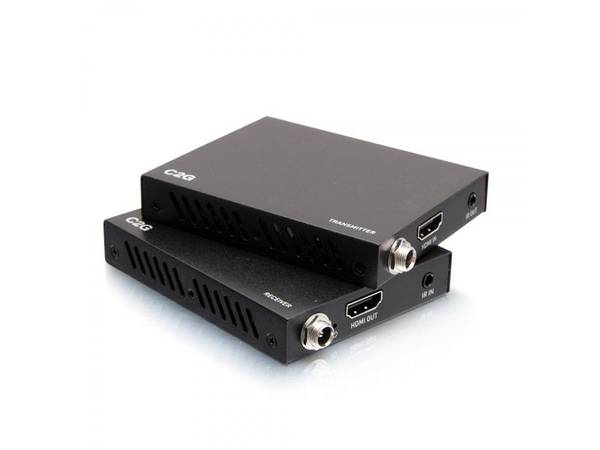

C2G 4K HDMI OVER CAT EXTENDER TX TO RX 6843174
SKU
6843174
Category: Repeaters & Transceivers
- Primary Information
Product Description: C2G over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz - video/audio extender - HDMI Device Type: Video/audio extender Form Factor: External Data Link Protocol: HDMI Transmission Medium: CAT 5e/6/6a Max Transfer Distance: 164 ft Power: DC 12 V Dimensions (WxDxH): 2.8 in x 3.5 in x 0.6 in Weight: 20.48 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio extender Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Max Resolution: 4096 x 2160 @ 60 Hz Max Transfer Distance: 164 ft Status Indicators: Power, status Features: 7.1 channel audio support, Dolby TrueHD support, Dolby Atmos support, DTS:X support, DTS-HD Master Audio support, 8KV ESD Protector, IR pass-through, power over cable (PoC) - Expansion / Connectivity
Interfaces: 1 x HDMI input - 19 pin HDMI Type A female ¦ 1 x HDMI output (output) - 19 pin HDMI Type A female ¦ 2 x - RJ-45 female ¦ 1 x IR (output) female ¦ 1 x IR (input) female - Miscellaneous
Included Accessories: 4 mounting brackets, IR sensor, Broadband IR Receiver Cables Included: Power cable - 6 ft Compliant Standards: HDCP 2.2 - Power
Power Device: External power adapter Voltage Required: DC 12 V - Dimensions & Weight
Width: 2.8 in Depth: 3.5 in Height: 0.6 in Weight: 20.48 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | C2G |
|---|---|
| UNSPSC | 43201553 |
| Part# | CTG-C2G60220 |
| MFG Part# | C2G60220 |
| UPC | 757120602200 |
| Max Transfer Distance | 164 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | Video/audio extender |
| Connectivity Technology | Wired |
| Form Factor | External |
| Data Link Protocol | HDMI |
| Color | Black |
