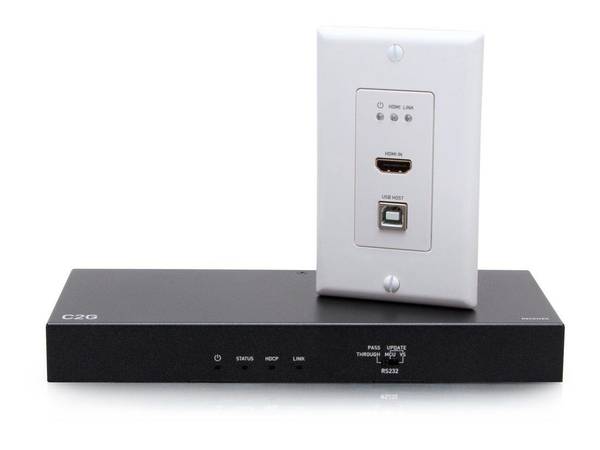

C2G 4K30HZ HDBASET HDMI+USB WP TX TO BOX RX 7252999
SKU
7252999
Category: AV Accessories
- Primary Information
Product Description: C2G HDMI HDBaseT + USB-B to A and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz - video/audio/USB/serial extender - HDMI, HDBaseT 2.0 Device Type: Video/audio/USB/serial extender (transmitter) Form Factor: External Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Data Link Protocol: HDMI, HDBaseT 2.0 Transmission Medium: CAT 5e/6/6a/7 Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoH Power: DC 12 V - General
Device Type: Video/audio/USB/serial extender (transmitter) Form Factor: External Color: White - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT 2.0 Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Max Resolution: 4K @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Power, status, USB, HDCP, HDMI, link Features: Reset button, built-in DIP switch, 4K resolution support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, USB Pass-Through, LPCM 5.1 support, Dolby Atmos support, DTS:X support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), auto-switching, YUV 4:2:0, DisplayPort Alternate mode, LPCM 2.0 support, front panel select buttons, VS210 chipset Compliant Standards: USB 2.0, HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x audio (input) - phone 3.5 mm female ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x USB 2.0 (host) - Type B female ¦ 1 x RS-232 - Miscellaneous
Compliant Standards: ESD - Power
Power Over Ethernet (PoE): PoH Power Device: External power adapter Voltage Required: DC 12 V - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 1.8 in x 1.8 in x 4.2 in / 7.1 oz ¦ Receiver: 9.1 in x 3.6 in x 1 in / 21.5 oz - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 52161600
| BRANDS | C2G |
|---|---|
| UNSPSC | 52161600 |
| Part# | CTG-C2G31030 |
| MFG Part# | C2G31030 |
| UPC | 757120310303 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/USB/serial extender (transmitter) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT 2.0, HDMI |
| Color | White |
| Frequency Band | 340 MHz |
