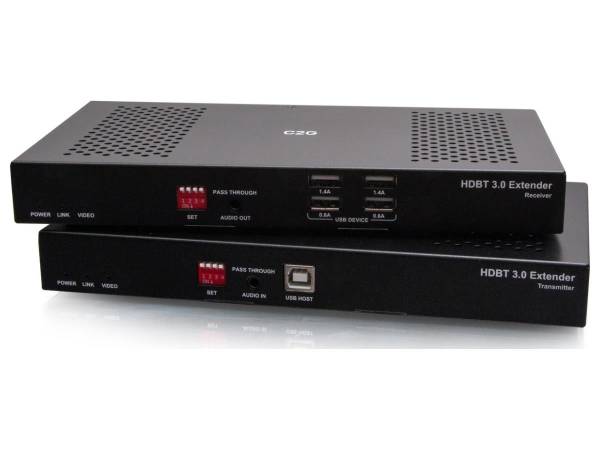

C2G 4K60HZ HDBASET 3.0 BOX TO BOX 7377078
SKU
7377078
Category: AV Accessories
- Primary Information
Product Description: C2G HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft - video/audio/USB/network extender - HDBaseT, HDMI Device Type: Video/audio/USB/network extender - USB Form Factor: External Data Transfer Rate: 18 Gbps Data Link Protocol: HDBaseT, HDMI Max Transfer Distance: 328 ft Power Over Ethernet (PoE): PoH Power: DC 12 V Manufacturer Warranty: 5-year warranty - General
Device Type: Video/audio/USB/network extender Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDBaseT, HDMI Data Transfer Rate: 18 Gbps Keyboard / Mouse Interface: USB Max Resolution: 4096 x 2160 @ 60 Hz Max Transfer Distance: 328 ft Status Indicators: Link, power, video Features: 7.1 channel audio support, CEC passthrough, Dolby Atmos support, Dolby TrueHD support, DTS:X support, DTS-HD Master Audio support, HDCP compliant, 4:4:4 chroma subsampling support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, firmware upgradable, audio pass-through, USB-C video input support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge) - Expansion / Connectivity
Interfaces: 1 x HDMI output (receiver) - 19 pin HDMI Type A female ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (transmitter output) - RJ-45 female ¦ 1 x HDBaseT (receiver input) - RJ-45 female ¦ 1 x RS-232 (transmitter) ¦ 1 x audio line-in - mini jack female ¦ 1 x audio line-out - mini jack female ¦ 4 x USB 2.0 (receiver) - Type A female ¦ 1 x USB 2.0 (transmitter) - Type B female - Miscellaneous
Compliant Standards: FCC, REACH, HDCP 2.2 - Power
Power Over Ethernet (PoE): PoH Power Device: External power adapter Voltage Required: DC 12 V - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Receiver: 8.3 in x 3.6 in x 1 in / 16.2 oz ¦ Transmitter: 4.2 in x 3.5 in x 1.5 in / 10.6 oz - Manufacturer Warranty
Service & Support: - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 52161600
| BRANDS | C2G |
|---|---|
| UNSPSC | 52161600 |
| Part# | CTG-C2G30055 |
| MFG Part# | C2G30055 |
| UPC | 757120300557 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | Video/audio/USB/network extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 18 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT, HDMI |
| Color | Black |
