C2G DUAL HDMI HDBASET + RS232 TX 6804742
SKU
6804742
CA$783.99

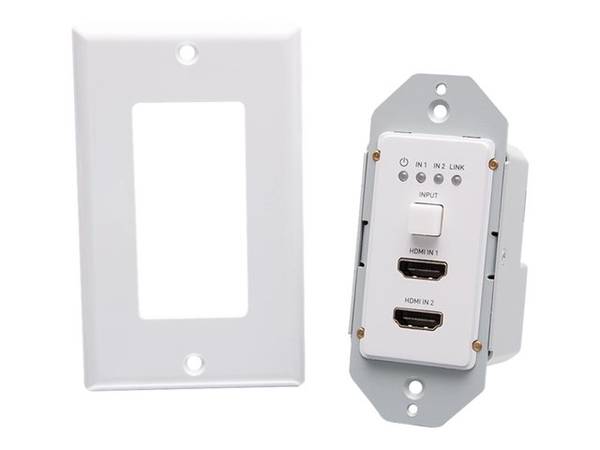

C2G Dual HDMI HDBaseT + RS232 over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz - This HDBaseT transmitter works with C2G30015 and C2G30016 receivers.
Category: Repeaters & Transceivers
- Primary Information
Product Description: C2G Dual 4K HDMI HDBaseT + RS232 Single Gang Wall Plate Transmitter - video/audio extender - HDMI, HDBaseT Device Type: Video/audio extender (transmitter) Form Factor: Wall mountable Data Transfer Rate: 10.2 Gbps Frequency Band: 320 MHz Data Link Protocol: HDMI, HDBaseT Transmission Medium: CAT 5e/6/6a Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoC Power: DC 12 V Dimensions (WxDxH): 1.8 in x 4.2 in x 1.8 in Weight: 6.35 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio extender (transmitter) Form Factor: Wall mountable Color: White - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT Data Transfer Rate: 10.2 Gbps Frequency Band: 320 MHz Max Resolution: 4K @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Power, input, link Features: Input selection buttons, 8KV ESD Protector, CEC passthrough, power over cable (PoC), LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support, auto-switching Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 2 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x network (input) - RJ-45 female ¦ 1 x RS-232 female ¦ 1 x HDBaseT (output) - RJ-45 female - Miscellaneous
Compliant Standards: EDID compatible, ESD - Power
Power Over Ethernet (PoE): PoC Power Device: Internal power supply Voltage Required: DC 12 V Power Consumption Operational: 9.126 Watt - Dimensions & Weight
Width: 1.8 in Depth: 4.2 in Height: 1.8 in Weight: 6.35 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | C2G |
|---|---|
| UNSPSC | 43222608 |
| Part# | CTG-C2G30022 |
| MFG Part# | C2G30022 |
| UPC | 757120300229 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio extender (transmitter) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | Wall mountable |
| Data Link Protocol | HDBaseT, HDMI |
| Color | White |
| Frequency Band | 320 MHz |
