C2G HDBASET + 3.5MM AUDIO EXTENDER 6733849
SKU
6733849
CA$230.99

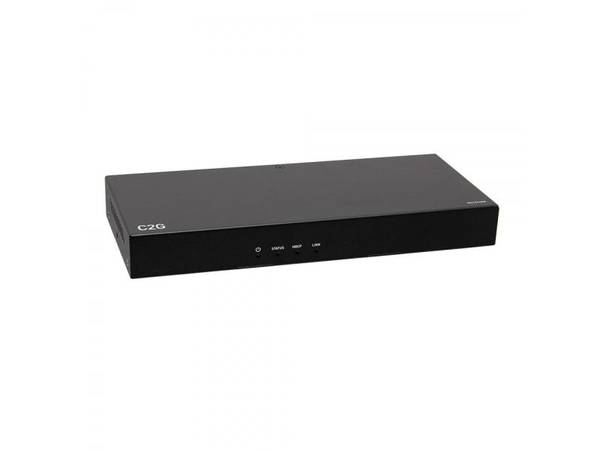

Legrand AV C2G HDMI HDBaseT + 3.5mm, USB A & RS232 Over Cat Audio De-Embedding Extender Box Receiver - 4K 60Hz
Category: Repeaters & Transceivers
- Primary Information
Product Description: C2G HDMI HDBaseT + 3.5mm, USB A & RS232 over Cat - Audio Extender Receiver - video/audio/USB/serial extender - HDBaseT 2.0 Device Type: Video/audio/USB/serial extender (receiver) Data Link Protocol: HDBaseT 2.0 Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoH Dimensions (WxDxH): 8.3 in x 3.6 in x 1 in Weight: 16.22 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/USB/serial extender (receiver) Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDBaseT 2.0 Max Resolution: 4096 x 2160 @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Status Features: LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, LPCM 5.1 support, Dolby Atmos support, DTS:X support, LPCM 2.0 support Compliant Standards: USB 2.0, HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDBaseT (input) - RJ-45 ¦ 1 x RS-232 (input) ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 4 x USB 2.0 (output) - Type A ¦ 1 x audio (pass-through) - mini jack ¦ 1 x audio (output) - mini jack - Power
Power Over Ethernet (PoE): PoH Power Consumption Operational: 8 Watt - Dimensions & Weight
Width: 8.3 in Depth: 3.6 in Height: 1 in Weight: 16.22 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | C2G |
|---|---|
| UNSPSC | 43222608 |
| Part# | CTG-C2G30020 |
| MFG Part# | C2G30020 |
| UPC | 757120300205 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | Video/audio/USB/serial extender (receiver) |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 2.0 |
| Color | Black |
