C2G HDBASET DUAL HDMI USBC WP TX AND BOX RX 7252995
SKU
7252995
Category: AV Accessories
- Primary Information

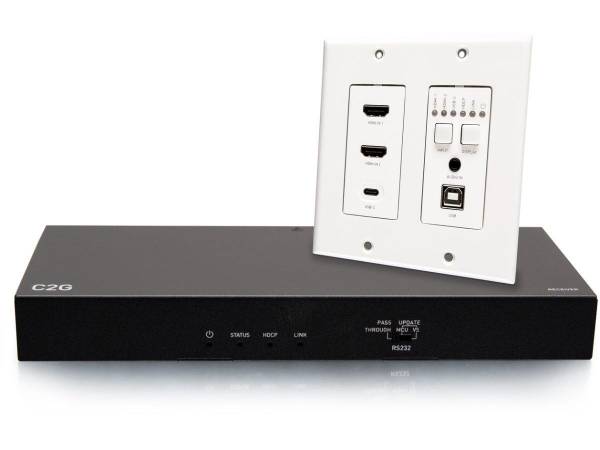

Product Description: C2G Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver - 4K 60Hz - video/audio/USB/serial extender - HDMI, HDBaseT 2.0 Device Type: Video/audio/USB/serial extender (transmitter) Form Factor: External Data Transfer Rate: 10.2 Gbps Data Link Protocol: HDMI, HDBaseT 2.0 Transmission Medium: CAT 5e/6/6a/7 Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoH Power: DC 12 V Manufacturer Warranty: 5-year warranty - General
Device Type: Video/audio/USB/serial extender (transmitter) Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT 2.0 Data Transfer Rate: 10.2 Gbps Max Resolution: 4K @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: HDMI, USB, HDCP, link, power, status Features: Audio de-embedding, power over HDBaseT (PoH), auto-switching, firmware upgradable, HDR 4K60 8-bit 4:2:0 compatible, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, Dolby Atmos support, Dolby TrueHD support, DTS:X support, DTS-HD Master Audio support, DisplayPort Alternate mode, YUV 4:2:0, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), VS210 chipset Compliant Standards: HDCP 2.2, USB 2.0 - Expansion / Connectivity
Interfaces: 2 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x USB 3.1 Gen 2 - Type C female ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x audio (input) - phone 3.5 mm female ¦ 1 x USB 2.0 (pass-through) - Type B female ¦ 1 x micro-USB (firmware update) - Type B female ¦ 1 x HDBaseT (input) - RJ-45 female ¦ 1 x RS-232 - 3 pin Phoenix female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x audio (output) - mini jack ¦ 1 x audio (pass-through) - mini jack ¦ 4 x USB - Type A female - Miscellaneous
Compliant Standards: EMI, TSCA, RoHS, REACH, NDAA Section 889 - Power
Power Over Ethernet (PoE): PoH Power Device: External power adapter Voltage Required: DC 12 V Power Consumption Operational: 8 Watt - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 3.5 in x 4.2 in x 1.5 in / 10.6 oz ¦ Receiver: 8.3 in x 3.6 in x 1 in / 16.2 oz - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% RH (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 52161600
| BRANDS | C2G |
|---|---|
| UNSPSC | 52161600 |
| Part# | CTG-C2G31020 |
| MFG Part# | C2G31020 |
| UPC | 757120310204 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/USB/serial extender (transmitter) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT 2.0, HDMI |
| Color | Black |
