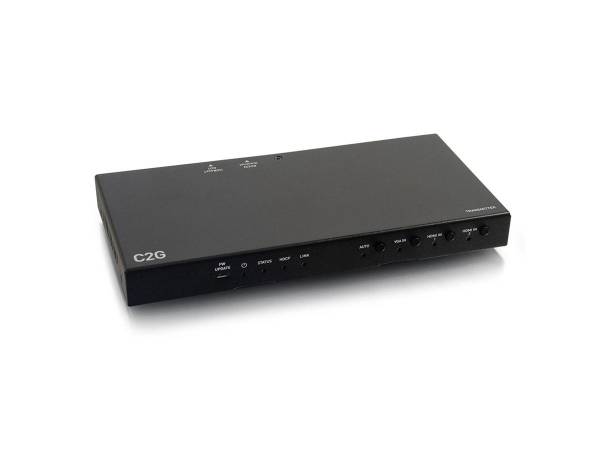

C2G HDBASET DUAL HDMI VGA BOX TRANSMITTER 6930697

Name: C2G HDBASET DUAL HDMI VGA BOX TRANSMITTER
Brand: C2G
SKU: 6930697
Price: 499.99 CAD
Availability: OutOfStock

SKU

6930697

CA$499.99

Legrand AV C2G HDBASET DUAL HDMI VGA BOX TRANSMITTER

Primary Information

Product Description:	C2G Dual HDMI+VGA Switch Box TX - video/audio/serial extender - HDMI, HDBaseT, VGA
Device Type:	Video/audio/serial extender
Form Factor:	External
Data Transfer Rate:	10.2 Gbps
Data Link Protocol:	HDMI, HDBaseT, VGA
Max Transfer Distance:	230 ft
Power Over Ethernet (PoE):	PoC
Power:	DC 18 V
Dimensions (WxDxH):	7.7 in x 3.7 in x 0.8 in
Manufacturer Warranty:	3-year warranty

General

Device Type: Video/audio/serial extender

Form Factor: External

Color: Black

Networking

Connectivity Technology:	Wired
Data Link Protocol:	HDMI, HDBaseT, VGA
Data Transfer Rate:	10.2 Gbps
Max Resolution:	4096 x 2160 @ 60 Hz
Max Transfer Distance:	230 ft
Features:	7.1 channel audio support, 8KV ESD Protector, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support, IR pass-through
Compliant Standards:	HDCP 2.2

Expansion / Connectivity

Interfaces: 2 x HDMI (input) - 19 pin HDMI Type A female Â¦ 1 x VGA (input) - HD-15 female Â¦ 1 x audio (input) - mini jack female Â¦ 1 x HDBaseT (output) - RJ-45 female
Miscellaneous

Compliant Standards: EDID compatible
Power

Power Over Ethernet (PoE): PoC

Power Device: External power adapter

Voltage Required: DC 18 V
Dimensions & Weight

Width: 7.7 in

Depth: 3.7 in

Height: 0.8 in
Manufacturer Warranty

Service & Support: Limited warranty - 3 years
Environmental Parameters

Min Operating Temperature: 32 Â°F

Max Operating Temperature: 113 Â°F

Humidity Range Operating: 10 - 90% (non-condensing)
Special Feature

COO: CHINA
UNSPSC Code

UNSPSC Code: 45111800
