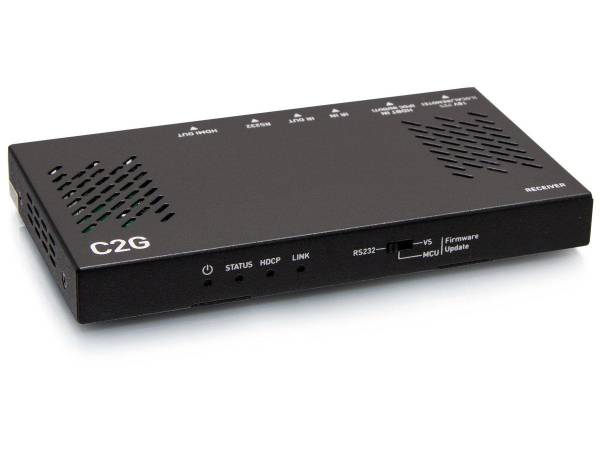

C2G HDBaseT HDMI RS232 IR Receiver Box 7076978
SKU
7076978
Category: AV Accessories
- Primary Information
Product Description: C2G HDMI Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4K 60Hz - video/audio/serial extender - HDMI, HDBaseT 2.0 Device Type: Video/audio/serial extender (receiver) Form Factor: External Localization: Australia, United Kingdom, United States, Europe Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Data Link Protocol: HDMI, HDBaseT 2.0 Transmission Medium: CAT 5e/6/6a/7 Max Transfer Distance: 230 ft Power: DC 18 V Dimensions (WxDxH): 4.3 in x 2.5 in x 0.6 in Weight: 6.35 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/serial extender (receiver) Form Factor: External Color: Black Localization: Australia, United Kingdom, United States, Europe - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT 2.0 Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Max Resolution: 4K @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Power, status, HDCP, link Features: Built-in DIP switch, CEC passthrough, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), bi-directional IR, bi-directional power over cable (PoC), HDR 4K60 8-bit 4:2:0 compatible, VS010 chipset Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDBaseT (input) - RJ-45 female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x RS-232 (pass-through / firmware update) - 3 pin Phoenix female ¦ 1 x IR (input) - mini jack female ¦ 1 x IR (output) - mini jack female - Miscellaneous
Included Accessories: 4 power plug adapters, IR sensor, 2 mounting brackets, double sided tape, 3-pin Phoenix connector, Broadband IR Receiver Compliant Standards: FCC Part 15, EMI - Power
Power Device: External power adapter Voltage Required: DC 18 V Power Consumption Operational: 8.88 Watt - Dimensions & Weight
Width: 4.3 in Depth: 2.5 in Height: 0.6 in Weight: 6.35 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 52161524
| BRANDS | C2G |
|---|---|
| UNSPSC | 52161524 |
| Part# | CTG-C2G31015 |
| MFG Part# | C2G31015 |
| UPC | 757120310150 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/serial extender (receiver) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT 2.0, HDMI |
| Color | Black |
| Frequency Band | 340 MHz |
