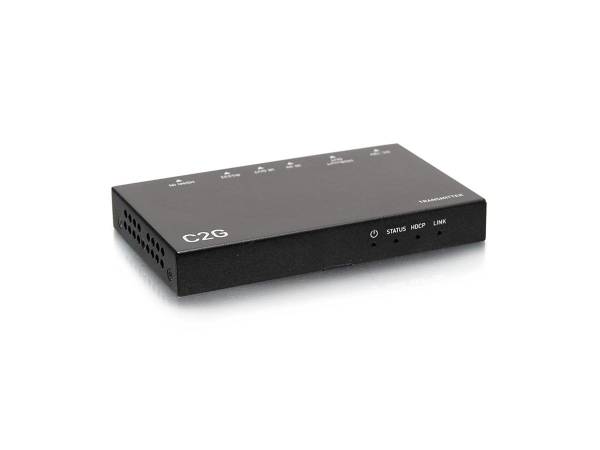

C2G HDBASET HDMI RS232 IR TRANSMITTER BOX 6930707

Name: C2G HDBASET HDMI RS232 IR TRANSMITTER BOX
Brand: C2G
SKU: 6930707
Price: 274.99 CAD
Availability: OutOfStock

SKU

6930707

CA$274.99

Legrand AV C2G HDBASET HDMI RS232 IR TRANSMITTER BOX

Primary Information

Product Description:	C2G HDMI + RS232 + IR TX Box - video/audio/serial extender - HDMI, HDBaseT
Device Type:	Video/audio/serial extender
Form Factor:	External
Data Transfer Rate:	10.2 Gbps
Data Link Protocol:	HDMI, HDBaseT
Max Transfer Distance:	230 ft
Power Over Ethernet (PoE):	PoC
Power:	DC 18 V
Dimensions (WxDxH):	4.3 in x 2.5 in x 0.6 in
Weight:	6.35 oz
Manufacturer Warranty:	3-year warranty

General

Device Type: Video/audio/serial extender

Form Factor: External

Color: Black

Networking

Connectivity Technology:	Wired
Data Link Protocol:	HDMI, HDBaseT
Data Transfer Rate:	10.2 Gbps
Max Resolution:	4096 x 2160 @ 60 Hz
Max Transfer Distance:	230 ft
Features:	7.1 channel audio support, Dolby TrueHD support, Dolby Atmos support, DTS:X support, DTS-HD Master Audio support, 8KV ESD Protector, IR pass-through
Compliant Standards:	HDCP 2.2

Expansion / Connectivity

Interfaces: 1 x HDMI input - 19 pin HDMI Type A Â¦ 1 x HDBaseT (output) - RJ-45 female Â¦ 1 x RS-232 Â¦ 1 x IR (output) female Â¦ 1 x IR (input) female
Power

Power Over Ethernet (PoE): PoC

Power Device: External power adapter

Voltage Required: DC 18 V

Power Consumption Operational: 8.88 Watt
Dimensions & Weight

Width: 4.3 in

Depth: 2.5 in

Height: 0.6 in

Weight: 6.35 oz
Manufacturer Warranty

Service & Support: Limited warranty - 3 years
Environmental Parameters

Min Operating Temperature: 32 Â°F

Max Operating Temperature: 113 Â°F

Humidity Range Operating: 10 - 90% (non-condensing)
Special Feature

COO: CHINA
UNSPSC Code

UNSPSC Code: 45111800
