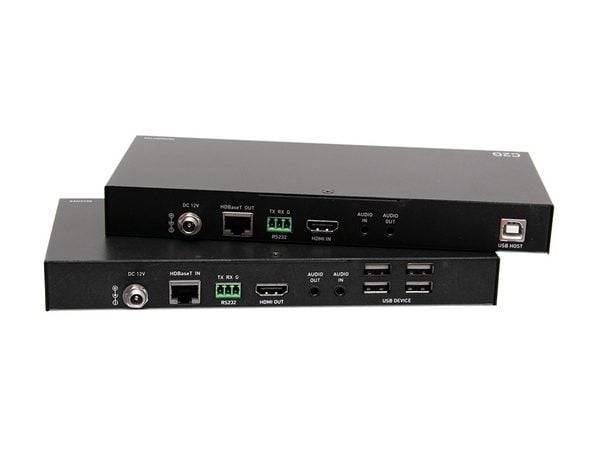

C2G HDBASET HDMI USB 3.5 RS232 BOX TO BOX 7245797
SKU
7245797
Category: AV Cables
- Primary Information
Product Description: C2G HDMI + USB + 3.5mm + RS232 Box to Box - video/audio/infrared/serial extender - HDMI, HDBaseT Device Type: Video/audio/infrared/serial extender - USB Form Factor: External Data Transfer Rate: 10.2 Gbps Data Link Protocol: HDMI, HDBaseT Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoH Power: DC 12 V Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/infrared/serial extender Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT Data Transfer Rate: 10.2 Gbps Keyboard / Mouse Interface: USB Max Resolution: 4096 x 2160 @ 60 Hz Max Transfer Distance: 230 ft Features: 7.1 channel audio support, 8KV ESD Protector, CEC passthrough, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support, IR pass-through Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDBaseT (transmitter output) - RJ-45 female ¦ 1 x HDBaseT (receiver input) - RJ-45 female ¦ 1 x RS-232 (receiver) ¦ 1 x RS-232 (transmitter) ¦ 2 x audio line-in - mini jack female ¦ 2 x audio line-out - mini jack female ¦ 4 x USB 2.0 (receiver) - Type A ¦ 1 x USB (transmitter) - Type B - Power
Power Over Ethernet (PoE): PoH Power Device: External power adapter Installed Qty: 2 Voltage Required: DC 12 V Power Consumption Operational: 19 Watt - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Receiver: 8.3 in x 3.6 in x 1 in / 16.9 oz ¦ Transmitter: 8.3 in x 3.6 in x 1 in / 15.5 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 26121620
| BRANDS | C2G |
|---|---|
| UNSPSC | 26121620 |
| Part# | CTG-C2G30013 |
| MFG Part# | C2G30013 |
| UPC | 757120300137 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | Video/audio/infrared/serial extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT, HDMI |
| Color | Black |
