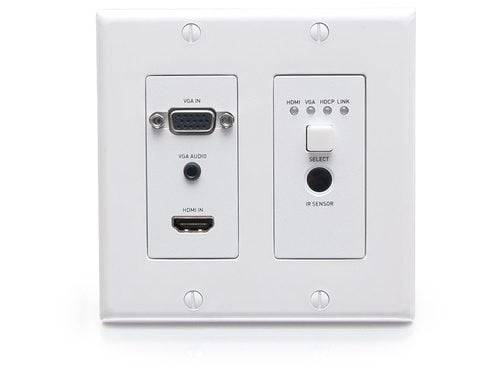

C2G HDBASET HDMI VGA WALL PLATE TRANSMITTER 7245798
SKU
7245798
Category: AV Cables
- Primary Information
Product Description: C2G 1 HDMI+VGA Wall Plate TX - video/audio/infrared/serial extender - HDMI, HDBaseT, VGA Device Type: Video/audio/infrared/serial extender Form Factor: Wall mountable Data Transfer Rate: 10.2 Gbps Data Link Protocol: HDMI, HDBaseT, VGA Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoC Dimensions (WxDxH): 3.5 in x 4.2 in x 1.5 in Weight: 10.58 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/infrared/serial extender Form Factor: Wall mountable Color: White - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT, VGA Data Transfer Rate: 10.2 Gbps Max Resolution: 4096 x 2160 @ 60 Hz Max Transfer Distance: 230 ft Features: 8KV ESD Protector Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x VGA (input) - HD-15 female ¦ 1 x audio (input) - mini jack female ¦ 1 x HDBaseT (output) - RJ-45 female - Miscellaneous
Compliant Standards: EDID compatible - Power
Power Over Ethernet (PoE): PoC - Dimensions & Weight
Width: 3.5 in Depth: 4.2 in Height: 1.5 in Weight: 10.58 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 26121620
| BRANDS | C2G |
|---|---|
| UNSPSC | 26121620 |
| Part# | CTG-C2G30017 |
| MFG Part# | C2G30017 |
| UPC | 757120300175 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | Video/audio/infrared/serial extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | Wall mountable |
| Data Link Protocol | HDBaseT, HDMI, VGA |
| Color | White |
