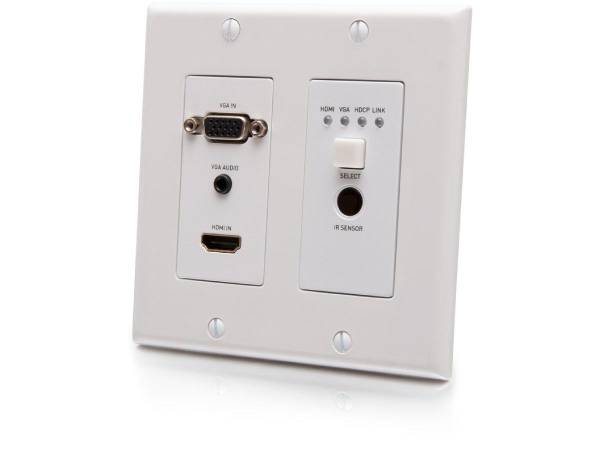

Product Description: | C2G HDMI HDBaseT + VGA , 3.5mm, RS232, and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz - video/audio/serial extender - HDMI, HDBaseT 2.0 |
Device Type: | Video/audio/serial extender (transmitter) |
Form Factor: | External |
Data Transfer Rate: | 10.2 Gbps |
Data Link Protocol: | HDMI, HDBaseT 2.0 |
Transmission Medium: | CAT 5e/6/6a/7 |
Max Transfer Distance: | 230 ft |
Power: | DC 12 V |
Dimensions (WxDxH): | 3.5 in x 4.2 in x 1.5 in |
Weight: | 10.58 oz |
Device Type: | Video/audio/serial extender (transmitter) |
Form Factor: | External |
Color: | White |
Connectivity Technology: | Wired |
Data Link Protocol: | HDMI, HDBaseT 2.0 |
Data Transfer Rate: | 10.2 Gbps |
Max Resolution: | 4K @ 60 Hz |
Max Transfer Distance: | 230 ft |
Status Indicators: | Power, USB, HDCP, HDMI |
Features: | 4K resolution support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, USB Pass-Through, LPCM 5.1 support, Dolby Atmos support, DTS:X support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), auto-switching, LPCM 2.0 support, front panel select buttons, VS010 chipset |
Compliant Standards: | USB 2.0, HDCP 2.2 |
Interfaces: | 1 x VGA (input) ¦ 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x audio line-in (input) - 3.5 mm ¦ 1 x HDBaseT (output) ¦ 1 x micro-USB female ¦ IR output ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x RS-232 (power output) - 2 pin Phoenix female ¦ 1 x RS-232 (power input) - 2 pin Phoenix female ¦ 1 x RS-232 - 3 pin Phoenix female ¦ 1 x RS-232 (IR output) female |
Included Accessories: | 3-pin Phoenix connector |
Compliant Standards: | HDCP 2.2, ESD |
Power Device: | External power adapter |
Voltage Required: | DC 12 V |
Power Consumption Operational: | 3.9 Watt |
Width: | 3.5 in |
Depth: | 4.2 in |
Height: | 1.5 in |
Weight: | 10.58 oz |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 113 °F |
Humidity Range Operating: | 10 - 90% (non-condensing) |
COO: | CHINA |
UNSPSC Code: | 52161600 |
BRANDS | C2G |
---|---|
UNSPSC | 52161600 |
Part# | CTG-C2G31017 |
MFG Part# | C2G31017 |
UPC | 757120310174 |
Max Transfer Distance | 230 ft |
Max Resolution | 4K @ 60 Hz |
Device Type | Video/audio/serial extender (transmitter) |
Connectivity Technology | Wired |
Data Transfer Rate | 10.2 Gbps |
Form Factor | External |
Data Link Protocol | HDBaseT 2.0, HDMI |
Color | White |
