C2G HDBASET + RS232 AND IR TX TO RX 6804744
SKU
6804744
CA$1,693.99

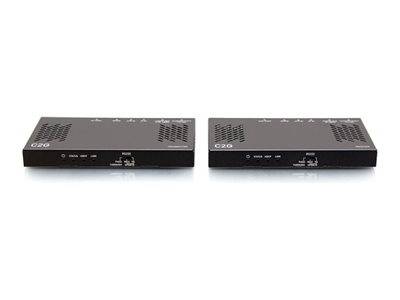

C2G HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz - Extend 4K at 30Hz (4:4:4) up to 328ft with Cat 6a cable
Category: Repeaters & Transceivers
- Primary Information
Product Description: C2G HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz - video/audio/serial extender - HDMI, HDBaseT Device Type: Video/audio/serial extender Form Factor: External Data Transfer Rate: 18 Gbps Frequency Band: 600 MHz Data Link Protocol: HDMI, HDBaseT Transmission Medium: CAT 6a Max Transfer Distance: 328 ft Power: DC 18 V Weight: 22.22 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/serial extender Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, HDBaseT Data Transfer Rate: 18 Gbps Frequency Band: 600 MHz Max Resolution: 4K @ 60 Hz Max Transfer Distance: 328 ft Features: Dolby TrueHD support, Dolby Atmos support, DTS-HD Master Audio support, DTS:X support, CEC passthrough, 8KV ESD Protector, power over HDBaseT (PoH), 4K resolution support, Visually Lossless Compression Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x network (input) - RJ-45 female ¦ 1 x network (output) - RJ-45 female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x RS-232 (input) female ¦ 1 x RS-232 (output) female - Miscellaneous
Compliant Standards: EDID compatible - Power
Power Device: External power adapter Installed Qty: 2 Voltage Required: DC 18 V - Dimensions & Weight
Weight: 22.22 oz Dimensions (WxDxH) / Weight Details: Transmitter: 5.4 in x 2.9 in x 0.6 in / 9.2 oz ¦ Receiver: 5.4 in x 2.9 in x 0.6 in / 9.2 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | C2G |
|---|---|
| UNSPSC | 43222608 |
| Part# | CTG-C2G30026 |
| MFG Part# | C2G30026 |
| UPC | 757120300267 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/serial extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 18 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT, HDMI |
| Color | Black |
| Frequency Band | 600 MHz |
