C2G HDBASET + USB C OVER CAT TRANSMITTER 6733848
SKU
6733848
CA$314.99

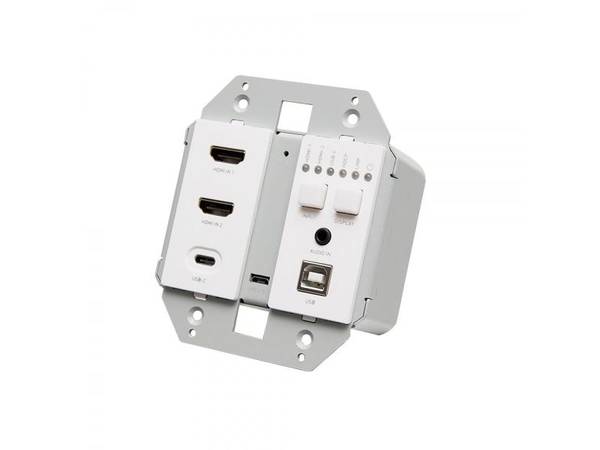

Legrand AV C2G Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B Over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz,Extend 4K HDMI up To 130FT Over a Single CAT6a Network Patch Cable using HDBaseT technology
Category: Repeaters & Transceivers
- Primary Information
Product Description: C2G Dual HDMI HDBaseT + USB C, 3.5mm & USB B over Cat Extender Transmitter - video/audio/USB extender - HDBaseT 2.0 Device Type: Video/audio/USB extender (transmitter) Data Transfer Rate: 10.2 Gbps Data Link Protocol: HDBaseT 2.0 Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoH Dimensions (WxDxH): 3.5 in x 4.2 in x 1.5 in Weight: 10.58 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/USB extender (transmitter) Color: White - Networking
Connectivity Technology: Wired Data Link Protocol: HDBaseT 2.0 Data Transfer Rate: 10.2 Gbps Max Resolution: 4K @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Status Features: LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, LPCM 5.1 support, Dolby Atmos support, DTS:X support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), DisplayPort Alternate mode, LPCM 2.0 support Compliant Standards: USB 2.0, HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x HDBaseT (output) - RJ-45 ¦ 1 x RS-232 ¦ 2 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x USB-C (input) female ¦ 1 x audio (input) - mini jack female ¦ 1 x USB 2.0 - Type B female ¦ 1 x micro-USB - Type B female - Miscellaneous
Compliant Standards: ESD - Power
Power Over Ethernet (PoE): PoH Power Consumption Operational: 7.8 Watt - Dimensions & Weight
Width: 3.5 in Depth: 4.2 in Height: 1.5 in Weight: 10.58 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | C2G |
|---|---|
| UNSPSC | 43222608 |
| Part# | CTG-C2G30019 |
| MFG Part# | C2G30019 |
| UPC | 757120300199 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/USB extender (transmitter) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDBaseT 2.0 |
| Color | White |
