C2G HDMI, VGA/AUX HDBASET EXTENDER 7087417
SKU
7087417
CA$679.99

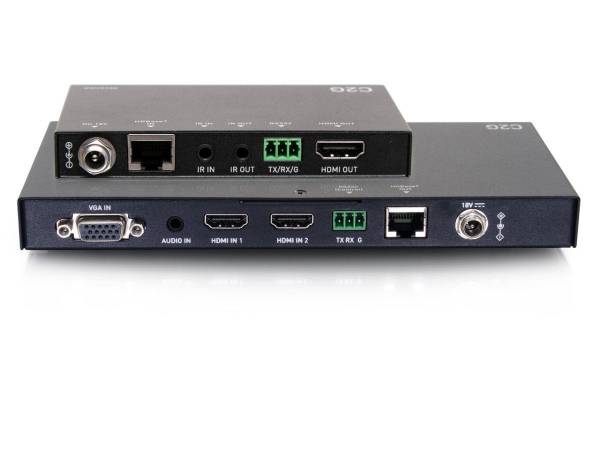

Legrand AV C2G Ultra-Slim HDBaseT Extender Dual HDMI, VGA, 3.5mm, RS232 over Cat6/Cat5
Category: AV Accessories
- Primary Information
Product Description: C2G Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter to Ultra-Slim Box Receiver - 4K 60Hz - video/audio/serial extender - HDBaseT, HDMI Device Type: Video/audio/serial extender (transmitter) Form Factor: External Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Data Link Protocol: HDBaseT, HDMI Transmission Medium: CAT 5e/6/6a/7 Max Transfer Distance: 230 ft Power: DC 18 V Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/serial extender (transmitter) Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDBaseT, HDMI Data Transfer Rate: 10.2 Gbps Frequency Band: 340 MHz Max Resolution: 4K @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Power, status, HDCP, link, auto, VGA, HDMI input Features: YUV 4:2:0, 8-bit Deep Color support, Dolby Atmos support, Dolby TrueHD support, DTS:X support, DTS-HD Master Audio support, LPCM 7.1 support, multi-channel audio downmixing, IR pass-through, bi-directional power over cable (PoC), 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge) Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x VGA (input) - DB-15 female ¦ 2 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x audio (input) - phone 3.5 mm female ¦ 1 x RS-232 ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x micro-USB (firmware update) - Type B female ¦ 1 x HDBaseT (input) - RJ-45 female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x RS-232 (pass-through) ¦ 1 x IR (input) ¦ 1 x IR (output) - Miscellaneous
Compliant Standards: EMI, WEEE, NDAA Section 889, REACH, RoHS, TSCA - Power
Power Device: External power adapter Voltage Required: DC 18 V Power Consumption Operational: 8.88 Watt - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 7.7 in x 3.7 in x 0.8 in ¦ Receiver: 4.3 in x 2.5 in x 0.6 in - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161600
| BRANDS | C2G |
|---|---|
| UNSPSC | 52161600 |
| Part# | CTG-C2G30027 |
| MFG Part# | C2G30027 |
| UPC | 757120300274 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/serial extender (transmitter) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | External |
| Data Link Protocol | HDBaseT, HDMI |
| Color | Black |
| Frequency Band | 340 MHz |
