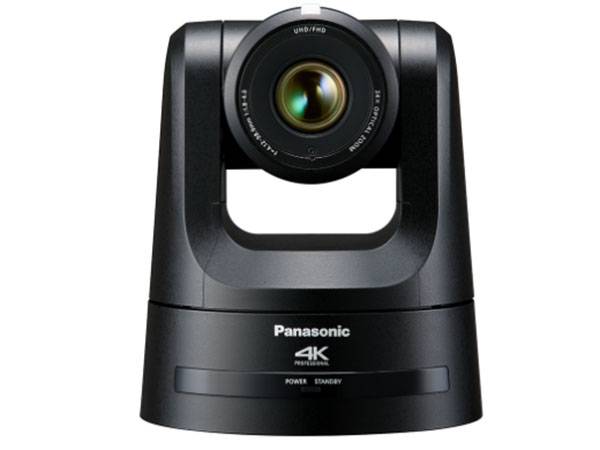

CAMERA 4K 60P UHD PROFESSIONAL PTZ BLK 6650998
SKU
6650998
- Primary Information
Product Description: Panasonic AW-UE100K - conference camera Device Type: Conference camera - pan / tilt / zoom Audio: Yes Dimensions (WxDxH): 6.7 in x 6.7 in x 8.1 in Weight: 4.85 lbs Color: Black Connectivity Technology: Wired Camera: Color - Day&Night - 1500 TVL Optical Zoom: 24 x Max Resolution: 3840 x 2160 Frame Rate (max): 60 frames per second Video Modes: 1080/24p, 1080/50i, 720/50p, 1080/50p, 1080/25p, 2160/24p, 2160/25p, 4K/50p, 4K/60p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/25PsF, 1080/23.98p, 1080/23.98PsF, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 2160/59.94p Optical Sensor Type: MOS - 1/2.5" Minimum Illumination: 3 lux F1.8 - 50 IRE Focal Length Control: Motorized zoom Focal Length: 4.12 mm - 98.9 mm Focus Adjustment: Automatic, manual (min distance 3.9 in) Lens Iris: F/1.8-4.0 Panning Range (degree): -175 to +175 Tilting Range (degree): -30 to +210 Interfaces: HDMI, 3G-SDI, 12G-SDI Control Interface: RS-422 Voltage: DC 10.8 - 13.2 V / PoE++ Features: Image stabilizer, auto white balance Environmental Parameters (operating): 32 °F - 104 °F; 20 - 90% (non-condensing) relative humidity - General
Device Type: Conference camera Audio Support: Yes Audio Formats: AAC-LC Connectivity Technology: Wired Width: 6.7 in Depth: 6.7 in Height: 8.1 in Weight: 4.85 lbs - Camera
Type: Color - Day&Night - pan / tilt / zoom Digital Video Format: MJPEG, H.264, H.265 Horizontal Resolution (TV Lines): 1500 Max Digital Video Resolution: 3840 x 2160 Video Modes: 1080/24p, 1080/50i, 720/50p, 1080/50p, 1080/25p, 2160/24p, 2160/25p, 4K/50p, 4K/60p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/25PsF, 1080/23.98p, 1080/23.98PsF, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 2160/59.94p Digital Zoom: 2 Exposure Range: 1/24 sec - 1/10000 sec Minimum Illumination: 3 lux F1.8 - 50 IRE Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 640 x 360, 3840 x 2160, 320 x 180 Frame Rate (max): 60 frames per second Supported Image Formats: JPEG Features: Image stabilizer, auto white balance - Image Sensor
Type: MOS 1/2.5" - Lens Construction
Type: Motorized zoom Optical Zoom: 24 x Focal Length: 4.12 mm - 98.9 mm Lens Iris: F/1.8-4.0 Focus Adjustment: Automatic, manual Min Focus Distance: 3.9 in Horizontal Field of View (degree): 3.3 - 74.1 Vertical Field of View (degree): 1.9 - 46 Diagonal Field of View (degree): 3.8 - 81.8 - Panning
Range (degree): -175 to +175 Speed (degree/sec): Up to 180 - Tilting
Range (degree): -30 to +210 Speed (degree/sec): Up to 180 - Interfaces
Video: HDMI, 3G-SDI, 12G-SDI Network Protocols: DDNS, DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, HTTPS, IPv4, IPv6, RTCP, IGMP, MLD, RTMP, RTMPS, SRT Control Interface: RS-422 - Expansion / Connectivity
Ports: Sync signal input - BNC ¦ Audio line in - 3.5 mm stereo jack ¦ HDMI output ¦ 12G-SDI - BNC ¦ 3G-SDI output - BNC ¦ Serial RS-422 - RJ-45 ¦ LAN/power - RJ-45 - Miscellaneous
Compliant Standards: IEEE 802.3bt Color: Black - Power
Power Requirements: DC 10.8 - 13.2 V / PoE++ - Software / System Requirements
OS Required: Apple iOS, Windows 10, Apple macOS 10.13, Apple macOS 10.14, Apple iPadOS, Apple macOS 10.15 - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Relative Humidity (operating): 20 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | PANASONIC |
|---|---|
| UNSPSC | 46171610 |
| Part# | PAN-AWUE100KPC |
| MFG Part# | AWUE100KPC |
| UPC | 885170373426 |
| Max Resolution | 3840 x 2160 |
| Device Type | Conference camera |
| Optical Zoom | 24 x |
| Connectivity Technology | Wired |
| Type | Motorized zoom |
| Color | Black |
| Digital Zoom | 2 |
| Focus Adjustment | Automatic, manual |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 320 x 180, 3840 x 2160, 640 x 360 |
| Focal Length | 4.12 mm - 98.9 mm |
