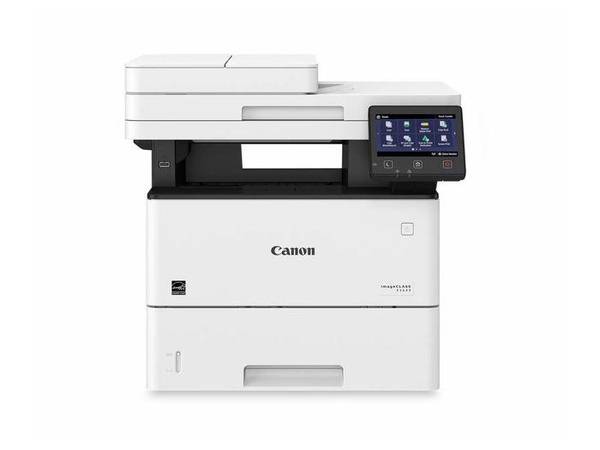

Model: | imageCLASS D1620 |
Printer Type: | Multifunction |
Functions: | Print, Copy, Scan, Send |
Printer Technology: | Laser |
Printer Color Type: | Monochrome |
Printer Interface: | Ethernet 10/100/1000Base-T; USB 2.0 |
Printer Speed: | Up to 45 ppm (Letter); Up to 36 ppm (Legal) |
First Page Out: | First Print-out Time: Approx. 6.2 Seconds |
Print Max Resolution ( B&W ): | 600 dpi x 600 dpi |
Duplex Printout: | Automatic |
Printer Language Simulation: | UFR II; PCL5; PCL 6; Adobe Postscript 3 |
AirPrint Enabled: | Yes |
Connection Availability: | Direct Print : Available from USB Memory (JPEG, TIFF, PDF) Printing From Mobile and Cloud-based Services :Apple AirPrint, Canon PRINT Business, Mopria Print Service |
Display Color Support: | YES |
Display Diagonal Size: | 5 Inch |
Touch Screen: | Yes |
Control Panel: | Touchscreen |
Printer Processor Type: | Canon Custom Processor |
RAM / Total Installed Size: | 1 GB |
Printer / Media Type: | Cassettes: Thin, Plain, Recycled, Color, Thick, Bond Stack Bypass: Thin, Plain, Recycled, Color, Thick, Bond, Label, Envelope (10 Envelopes) |
Printer / Media Size (Standard): | Cassettes: Letter, Legal, Statement, Executive Custom (Min. 4.1" x 5.8" to Max. 8.5" x 14"); Stack Bypass: Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3" x 5" to Max. 8.5" x 14") |
Printer / Media Weight: | Cassettes: 16 lb. Bond to 32 lb. Bond (52 to 120 g/m2); Stack Bypass: 16 lb. Bond to 53 lb. Bond (52 to 199 g/m2) |
Printer / Original Size: | Sheet, Book |
Printer / Total Media Capacity: | Standard: 650 Sheets; Maximum: 2300 Sheets |
Printer / Input Capacities: | Standard: 550-sheet Paper Cassette, 100-sheet Stack Bypass |
Printer / Output Capacities: | Standard: 150 Sheets |
Printer / Document Feeder Capacity: | 50 Sheets |
Supported Envelope Sizes: | Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3" x 5" to Max. 8.5" x 14") |
Copying Speed (B&W): | Up to 45 ppm (Letter); Up to 36 ppm (Legal) |
First Copy Out Time: | Approx. 6.2 Seconds Ms |
Copying / Max Copying Resolution B/W: | 600 x 600 (dpi) |
Max Document Enlargement: | 129%, 200%, 400% |
Max Document Reduction: | 25%, 50%, 64%, 78% |
Maximum Copies: | Up to 999 Copies |
Copying Features: | Paper Setting, Favorite Settings, Two-sided, Original Type Selection, Cancel, N-on-1, Density Adjustment, Sharpness, Erase Frame, Collate, Copy ID Card |
Maximum Document Reduction: | 25%, 50%, 64%, 78% |
Maximum Document Enlargement: | 129%, 200%, 400% |
Scanner Type: | Automatic Document Feeder |
Scan Technology: | Single-Pass Duplexing Automatic Document Feeder |
Optical Resolution: | 600 x 600 Dpi; 300 x 600 Dpi |
System Requirement: | UFR II/PCL/PS: Windows 7/ Windows 8.1/ Windows 10/ Windows Server 2008/ Windows Server 2008 R2/ Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016/Mac OS X v10.8.5 (or later) |
Power / Device Type: | Power Supply |
Power / Voltage Required: | AC 120-127 V:7.1 A, 60 Hz |
Power Consumption Operational: | 1390 Watt |
Power Consumption Standby: | Approx. 17 W |
Power Consumption Sleep-Mode: | Approx. 0.9 W |
Interfaces & Connections: | USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi Direct Connection |
Security Protocols & Features: | Authentication Standard: Department ID Authentication Network Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP Document Standard: Secure Print Optional: Encrypted PDF, User and Device Signatures Wi-fi Authentication Methods Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) Wi-Fi Access Point: WPA2-PSK (AES) |
Color: | White |
Width: | 19.5 Inch |
Depth: | 18.3 Inch |
Height: | 17.8 Inch |
Service & Support Type: | 3 Year Limited Warranty |
Min Operating Temperature: | 50 degree Fahrenheit |
Max Operating Temperature: | 86 degree Fahrenheit |
Humidity Range Operating: | 20 to 80% RH (no condensation) |
COO: | Inquire |
TAA compliance: | Inquire |
EPEAT Level: | Silver |
Energy Star Compliant: | Yes |
UNSPSC Code: | 43212105 |
BRANDS | CANON |
---|---|
UNSPSC | 43212105 |
Part# | CAN-2223C024 |
MFG Part# | 2223C024 |
UPC | 13803311662 |
Touch Screen | Yes |
Printer Type | Multifunction |
Display Diagonal Size | 5 Inch |
EPEAT Level | Silver |
RAM / Total Installed Size | 1 GB |
Printer Language Simulation | Adobe Postscript 3, PCL 6, PCL5, UFR II |
Duplex Printout | Automatic |
Printer Color Type | Monochrome |
Printer Interface | Ethernet 10/100/1000Base-T, USB 2.0 |
Printer Technology | Laser |
Scanner Type | Automatic Document Feeder |
Energy Star Compliant | Yes |
Color | White |
Power / Device Type | Power Supply |
Control Panel | Touchscreen |
Optical Resolution | 300 x 600 Dpi, 600 x 600 Dpi |
