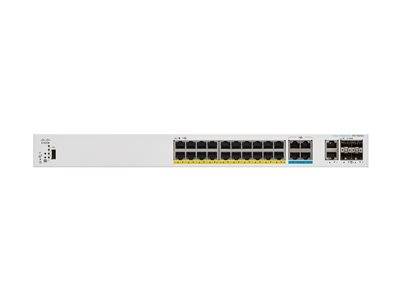

CATALYST 1300 8-PORT 2.5GE, 16-PORT GE, POE, 4X10G SFP+ 7974083
SKU
7974083
CA$2,141.17
CATALYST 1300 8-PORT 2.5GE, 16-PORT GE, POE, 4X10G SFP+, ARM dual-core at 1.4 GHz, Flash 512 MB, 1 GB DDR4, support IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3s, Layer 2 and Layer 3, up to 9000 bytes Jumbo Frame
Category: Hubs & Switches
- Primary Information
Product Description: Cisco Catalyst 1300-24MGP-4X - switch - 24 ports - managed - rack-mountable Device Type: Switch - 24 ports - L3 - managed - stackable Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 16 x 10/100/1000 (PoE+) + 8 x 2.5G (PoE+) + 4 x 10 Gigabit SFP+ Power Over Ethernet (PoE): PoE+ PoE Budget: 195 W Performance: Forwarding rate (64‑byte packets): 95.23 Mpps ¦ Switching capacity: 128 Gbps Capacity: MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB MAC Address Table Size: 16000 entries Jumbo Frame Support: 9000 bytes Routing Protocol: STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2 Remote Management Protocol: CLI, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP, SNMP 2c, SNMP 3, RMON, RADIUS Features: Fanless, VLAN support, STP support, CLI management, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button Compliant Standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at Power: AC 100-240 V (50 - 60 Hz) Dimensions (WxDxH): 17.5 in x 11.8 in x 1.7 in Weight: 8.11 lbs Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 24 ports - L3 - managed - stackable Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 16 x 10/100/1000 (PoE+) + 8 x 2.5G (PoE+) + 4 x 10 Gigabit SFP+ Power Over Ethernet (PoE): PoE+ PoE Budget: 195 W Performance: Forwarding rate (64‑byte packets): 95.23 Mpps ¦ Switching capacity: 128 Gbps Capacity: MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB MAC Address Table Size: 16000 entries Jumbo Frame Support: 9000 bytes Max Units In A Stack: 8 Routing Protocol: STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2 Remote Management Protocol: CLI, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP, SNMP 2c, SNMP 3, RMON, RADIUS Encryption Algorithm: SSL, MD5 Authentication Method: RADIUS, TACACS+ Features: Fanless, VLAN support, STP support, CLI management, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button Compliant Standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at Processor: X ARM: 1.4 GHz RAM: 1 GB DDR4 SDRAM Flash Memory: 512 MB Status Indicators: System, link/activity/speed, PoE - Expansion / Connectivity
Interfaces: 16 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 8 x 2.5GBase-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50 - 60 Hz) - Miscellaneous
Included Accessories: Pointer card, mounting kit MTBF: 2,165,105 hours Compliant Standards: Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE - Dimensions & Weight
Width: 17.5 in Depth: 11.8 in Height: 1.7 in Weight: 8.11 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - response time: next business day ¦ Technical support - return to factory - 1 year - Environmental Parameters
Min Operating Temperature: 23 °F Max Operating Temperature: 122 °F Humidity Range Operating: 10 - 90% RH (non-condensing) Min Storage Temperature: -13 °F Max Storage Temperature: 158 °F Humidity Range Storage: 10 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | CISCO SYSTEMS |
|---|---|
| UNSPSC | 43222612 |
| Part# | CSC-C1300-24MGP-4X |
| MFG Part# | C1300-24MGP-4X |
| UPC | 889728521932 |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Remote Management Protocol | CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP |
| Encryption Algorithm | MD5, SSL |
