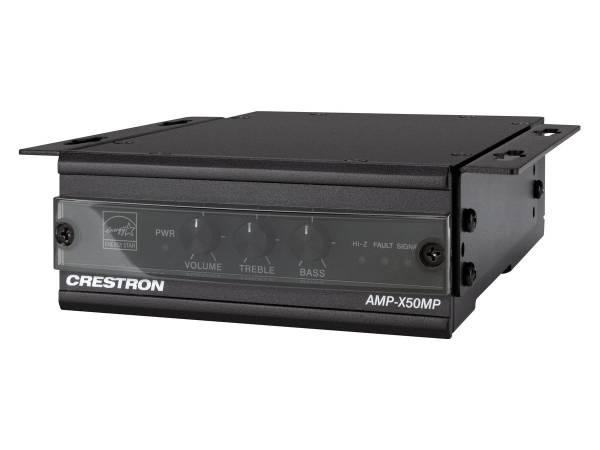

CRESTRON X SERIES MEDIA PRESENTATION AMPLIFIER, 50 W 8027568
SKU
8027568
CA$565.32
Category: Combined AV Devices
- Primary Information
Device Types: Distribution Amplifier Connectivity Technology: Wired Connectivity Protocols: Speaker Output (1) 6-pin, 5.08 mm pitch, 12A plug with screw locking retainers; Power amplifier outputs; Wire Size: Terminals accept up to 12AWG (3.31 mm2) ALS OUT (1) 3.5 mm connector, female; Unbalanced line level audio outputs; Maximum Output Level: 2.24Vrms, +7 dBV (+9.2 dBu); Fixed audio output for assisted listening devices duplicates the summed audio input AUDIO IN 1-2 (unbalanced) (2) RCA connectors, female; Unbalanced line level audio inputs; Maximum Input Level: 2.24Vrms, +7 dBV (+9.2 dBu) AUDIO IN 1-2 (unbalanced) (1) 3.5 mm connector, female; Unbalanced line level audio inputs; Maximum Input Level: 2.24Vrms, +7 dBV (+9.2 dBu) AUDIO IN 1-2 (balanced) (1) 5 pin 3.5 mm detachable terminal block; Balanced line level audio inputs; Maximum Input Level: 7.75Vrms, +20 dBu; Input Impedance: 20k Ohms REMOTE (1) 2 pin 3.5 mm detachable terminal block; Connect to contact closure to place amplifier in standby mode. G (1) M3 with captivated internal tooth lock washer screw; Chassis ground lug 24V, 2.5A (1) External 60 W desktop power supply (24VDC/2.5A); Mates with locking barrel connector DC cord; Power supply included. Audio Output: YES - Dimensions&Miscellaneous
Width: 4.33 Inch Depth: 6.99 Inch Height: 1.74 Inch - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 45111800
| BRANDS | CRESTRON ELECTRONICS |
|---|---|
| UNSPSC | 45111800 |
| Part# | AMP-X50MP |
| MFG Part# | 6511106 |
| Device Types | Distribution Amplifier |
| Connectivity Technology | Wired |
| Audio Output | YES |
