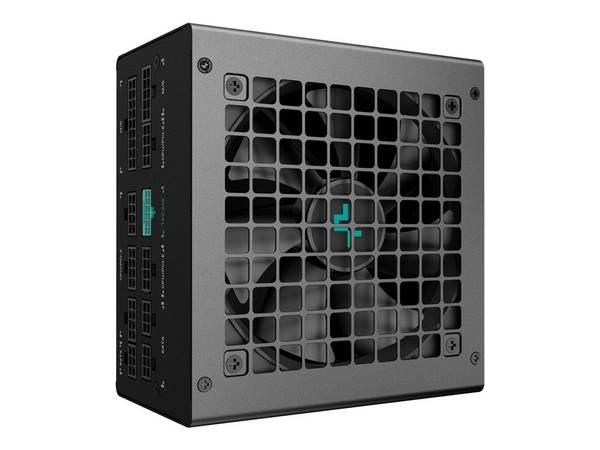

DEEPCOOL PN750M FULL MODULAR PSU,750W,80+ GOLD, ATX3.1 8027443
SKU
8027443
CA$127.63
DEEPCOOL PN750M FULL MODULAR PSU, 750W, 80+ GOLD, ATX 3.1 AND PCIE 5.1 STANDARD,12V-2X6, 5 EPS/PCIE PORTS.
Category: Power Supplies
- Primary Information
Product Description: Deepcool PN750M - power supply - 750 Watt Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V 3.1/ EPS12V 80 PLUS Certification: 80 PLUS Gold Localization: United States Input Voltage: AC 100-240 V Output Voltage: +3.3, ±5, ±12 V Power Capacity: 750 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A Output connectors: 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 2 x 4 pin internal power ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12VHPWR Modular Cable Management: Yes Cooling System: 120 mm fan Included Accessories: Screws, cable ties Color: Black Dimensions (WxDxH): 5.9 in x 5.5 in x 3.4 in Manufacturer Warranty: 10-year warranty - General
Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V 3.1/ EPS12V PSU Form Factor: ATX Color: Black Localization: United States - Power Device
Input Voltage: AC 100-240 V Frequency Required: 50 - 60 Hz Power Output Connectors Details: 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 2 x 4 pin internal power ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12VHPWR Output Voltage: +3.3, ±5, ±12 V Power Capacity: 750 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A Efficiency: 90% Modular Cable Management: Yes 80 PLUS Certification: 80 PLUS Gold - Miscellaneous
Included Accessories: Screws, cable ties Cables Included: AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 1.8 ft ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 2.3 ft ¦ 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 1.8 ft ¦ 16-pin 12VHPWR power modular cable 2 ft ¦ 2 x power 15 pin SATA cable / 4 pin internal power cable modular cable 3 ft MTBF: 100,000 hours Cooling System: 120 mm fan Features: Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, DC-DC technology, fluid dynamic bearing cooling fan, no load operation protection, fully modular, LLC Full Bridge Topology Compliant Standards: TUV, CCC, FCC, RoHS, WEEE, cTUVus, EAC, RCM, ErP 2014, Triman - Manufacturer Warranty
Service & Support: Limited warranty - 10 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F - Dimensions & Weight
Width: 5.9 in Depth: 5.5 in Height: 3.4 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121004
| BRANDS | DEEPCOOL |
|---|---|
| UNSPSC | 39121004 |
| Part# | DPL-R-PN750M-FC0B-US |
| MFG Part# | R-PN750M-FC0B-US |
| UPC | 6933412719427 |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| 80 PLUS Certification | 80 PLUS Gold |
| Color | Black |
| Efficiency | 90% |
