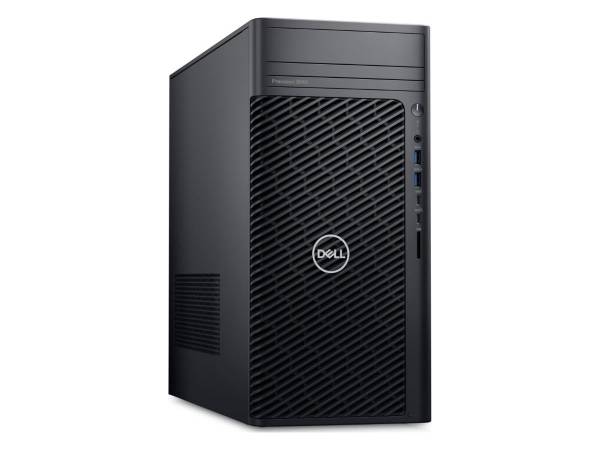

DELL PRECISION 3680 TOWER CORE I5 14 14500 16GB 2DIMMS 512GB NVIDIA QUADRO T1000 NOWLS RW W11 7609156
SKU
7609156
CA$3,550.18
Precision 3680 Tower Workstation - Tower - Intel - Core i5 14500 - 2.6GHz - 14-Core - 5GHz - DDR5 - 16GB RAM - 4400MHz - 512GB SSD - NVIDIA T1000 - Power Supply - 500Watt - Gigabit Ethernet - Keyboard, Mouse - Windows 11 Professional - 3year
Category: Workstations
- Primary Information
System Type: Personal Computer Model: Precision 3680 Tower Workstation Cabinet Form Factor: Tower Processor / Generation: Intel 14th Generation Processor / Type: Core i5 Processor / Manufacturer: Intel Processor / Clock Speed: 2.6 GHz Max Turbo Frequency: 5 GHz Processor / Number: 14500 Multi-Core Technology: 14-Core Processor / Installed Qty: 1 Cache Memory Type: Smart Cache Cache Memory Installed Size: 24 MB Processor / Socket Type: FCLGA1700 Mainboard / Chipset Type: Intel W680 RAM / Technology: DDR5 RAM / Total Installed Size: 16 GB RAM / Installed Qty: 2 RAM Form Factor: DIMM RAM / Memory Speed: 4400 MHz RAM / Total Slots Qty: 2 RAM / Max Supported Size: 128 GB 2nd Hard Drive Capacity: None GB Hard Drive Capacity / HDD: None GB Hard Drive / Installed Qty: None Hard Drive / Interface Type: PCIe NVMe Hard Drive / Spindle Speed: None RPM Hard Drive Capacity / SSD: 512 GB SSD / Installed Qty: 1 Optical Storage Type: 8x DVD+/-RW 9.5mm Optical Disk Drive Video Output Type: DisplayPort Data Link Protocol: Gigabit Ethernet Graphics Controller: NVIDIA T1000 Video Memory / Technology: GDDR6 Video Memory / Installed Size: 4 GB Video Interfaces: DisplayPort Audio Output: Line-out Input Device Support Type: Keyboard, Mouse Keyboard: Dell Multimedia Wired Keyboard - KB216 Black - US English Mouse: Dell Optical Mouse - MS116 (Black) Operating System: Microsoft Windows 11 Pro Interfaces & Connections: Front: USB 3.2 Gen 1 (5 Gbps) port; USB 3.2 Gen 1 (5 Gbps) port with PowerShare; USB 3.2 Gen 2 (10 Gbps) Type-C port; USB 3.2 Gen 2x2 (20 Gbps) Type-C port with PowerShare; Universal Audio port; Rear: (2) DisplayPort 1.4a HBR2 ports; (2) USB 2.0 (480 Mbps) ports with SmartPower; RJ45 (1 GbE) Ethernet port; (2) USB 3.2 Gen 2 (10 Gbps) ports; (2) USB 3.2 Gen 2 (10 Gbps) Type-C ports; Audio line-out; Front I/O Ports: USB 3.2 Gen 1 (5 Gbps) port; USB 3.2 Gen 1 (5 Gbps) port with PowerShare; USB 3.2 Gen 2 (10 Gbps) Type-C port; USB 3.2 Gen 2x2 (20 Gbps) Type-C port with PowerShare; Universal Audio port; Rear I/O Ports: (2) DisplayPort 1.4a HBR2 ports; (2) USB 2.0 (480 Mbps) ports with SmartPower; RJ45 (1 GbE) Ethernet port; (2) USB 3.2 Gen 2 (10 Gbps) ports; (2) USB 3.2 Gen 2 (10 Gbps) Type-C ports; Audio line-out; Service & Support Type: 3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS Security Devices: TPM Expansion Slots Total (Free): Front:SD-card slot. Rear: Full-height Gen5 PCIe x16 slot; Full-height Gen3 PCIe x4 slot; Full-height Gen4 PCIe x4 open-ended slot Power / Device Type: Power Supply Power / Provided (W): 500 Watt 80 PLUS Certification: 80 PLUS Platinum Width: 6.81 Inch Depth: 16.54 Inch Height: 14.68 Inch Enclosure Color: BLACK - Processor
Processor / Generation: Intel 14th Generation Processor / Type: Core i5 Processor / Manufacturer: Intel Processor / Clock Speed: 2.6 GHz Processor / Number: 14500 Processor / Installed Qty: 1 Cache Memory Type: Smart Cache Cache Memory Installed Size: 24 MB Multi-Core Technology: 14-Core Processor / Socket Type: FCLGA1700 - Memory
RAM / Technology: DDR5 RAM / Total Installed Size: 16 GB RAM / Installed Qty: 2 RAM / Total Slots Qty: 2 RAM / Max Supported Size: 128 GB - Storage
Hard Drive Capacity / HDD: None GB Hard Drive / Installed Qty: None Hard Drive / Interface Type: PCIe NVMe Hard Drive / Spindle Speed: None RPM Hard Drive Capacity / SSD: 512 GB 2nd Hard Drive Capacity: None GB SSD / Installed Qty: 1 Optical Storage Type: 8x DVD+/-RW 9.5mm Optical Disk Drive - Software
Service & Support Type: 3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS - Networking
Data Link Protocol: Gigabit Ethernet - Expansion
Interfaces & Connections: Front: USB 3.2 Gen 1 (5 Gbps) port; USB 3.2 Gen 1 (5 Gbps) port with PowerShare; USB 3.2 Gen 2 (10 Gbps) Type-C port; USB 3.2 Gen 2x2 (20 Gbps) Type-C port with PowerShare; Universal Audio port; Rear: (2) DisplayPort 1.4a HBR2 ports; (2) USB 2.0 (480 Mbps) ports with SmartPower; RJ45 (1 GbE) Ethernet port; (2) USB 3.2 Gen 2 (10 Gbps) ports; (2) USB 3.2 Gen 2 (10 Gbps) Type-C ports; Audio line-out; Front I/O Ports: USB 3.2 Gen 1 (5 Gbps) port; USB 3.2 Gen 1 (5 Gbps) port with PowerShare; USB 3.2 Gen 2 (10 Gbps) Type-C port; USB 3.2 Gen 2x2 (20 Gbps) Type-C port with PowerShare; Universal Audio port; Rear I/O Ports: (2) DisplayPort 1.4a HBR2 ports; (2) USB 2.0 (480 Mbps) ports with SmartPower; RJ45 (1 GbE) Ethernet port; (2) USB 3.2 Gen 2 (10 Gbps) ports; (2) USB 3.2 Gen 2 (10 Gbps) Type-C ports; Audio line-out; Expansion Slots Total (Free): Front:SD-card slot. Rear: Full-height Gen5 PCIe x16 slot; Full-height Gen3 PCIe x4 slot; Full-height Gen4 PCIe x4 open-ended slot - Power
Power / Device Type: Power Supply Power / Provided (W): 500 Watt - Dimensions&Miscellaneous
Width: 6.81 Inch Depth: 16.54 Inch Height: 14.68 Inch Enclosure Color: BLACK - Special Feature
Security Devices: TPM COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211515
| BRANDS | DELL CSG |
|---|---|
| UNSPSC | 43211515 |
| Part# | DELL-R9M8H |
| MFG Part# | R9M8H |
| UPC | 884116470625 |
| RAM Form Factor | DIMM |
| RAM / Installed Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| Mainboard / Chipset Type | Intel W680 |
| Cache Memory Installed Size | 24 MB |
| Processor / Installed Qty | 1 |
| Multi-Core Technology | 14-Core |
| Processor / Number | 14500 |
| Processor / Manufacturer | Intel |
| RAM / Memory Speed | 4400 MHz |
| RAM / Total Slots Qty | 2 |
| 80 PLUS Certification | 80 PLUS Platinum |
| Video Memory / Installed Size | 4 GB |
| Video Memory / Technology | GDDR6 |
| SSD / Installed Qty | 1 |
| Hard Drive Capacity / SSD | 512 GB |
| Hard Drive / Spindle Speed | None RPM |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe NVMe |
| Hard Drive Capacity / HDD | None GB |
| RAM / Technology | DDR5 |
| Processor / Socket Type | FCLGA1700 |
| Cache Memory Type | Smart Cache |
| Max Turbo Frequency | 5 GHz |
| Processor / Clock Speed | 2.6 GHz |
| Processor / Type | Core i5 |
| Cabinet Form Factor | Tower |
| Data Link Protocol | Gigabit Ethernet |
| Graphics Controller | NVIDIA T1000 |
| Power / Device Type | Power Supply |
| Operating System | Microsoft Windows 11 Pro |
| Input Device Support Type | Keyboard, Mouse |
| Audio Output | Line-out |
| Video Interfaces | DisplayPort |
| System Type | Personal Computer |
| Processor / Generation | Intel 14th Generation |
