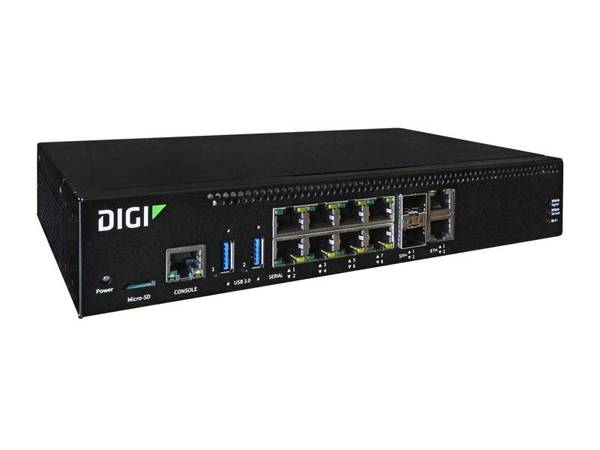

DIGI CONNECT EZ 8 SERIAL SERVER, 8 RS-232 SERIAL PORTS, CMG4 LTE CORE MODULE 7514138
SKU
7514138
CA$2,602.81
CONNECT EZ 8 SERIAL SERVER, 8 RS-232 SERIAL PORTS, CMG4 LTE CORE MODULE
Category: Network Devices
- Primary Information
Product Description: Digi Connect EZ 8 Cellular - device server - CMG4 - with 1-year Digi LifeCycle Assurance Device Type: Device server Bundled Services: 1-year Digi LifeCycle Assurance Form Factor: Rack-mountable RAM: 256 MB Flash Memory: 4 GB Ports Qty: 8 Data Link Protocol: RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet Cellular Protocol: LTE Cellular Band: GSM 850/900/1800/1900 / UMTS B1/B19/B2/B4/B5/B6/B8 / LTE B1/B12/B13/B18/B19/B2/B20/B25/B26/B3/B38/B4/B40/B41/B5/B7/B8 Included Accessories: Rack ears, LTE modem (plug-in) Power: AC 100-240 V Dimensions (WxDxH): 10.2 in x 6.3 in x 1.7 in Manufacturer Warranty: 5-year warranty - General
Device Type: Device server Bundled Services: 1-year Digi LifeCycle Assurance Width: 10.2 in Depth: 6.3 in Height: 1.7 in - Processor / Memory / Storage
RAM: 256 MB Flash Memory: 4 GB - Networking
Form Factor: Rack-mountable Ports Qty: 8 Connectivity Technology: Wired Data Link Protocol: RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet Remote Management Protocol: SNMP 3, HTTP, HTTPS, Telnet, SSH, NTP, SMTP, SCP, Syslog Status Indicators: Power, WWAN, Wi-Fi, Ethernet link/activity, serial, USB, console Features: Auto-sensing per device Authentication Method: TACACS+, LDAP, RADIUS - Communications
Cellular Protocol: LTE Cellular Band: GSM 850/900/1800/1900 / UMTS B1/B19/B2/B4/B5/B6/B8 / LTE B1/B12/B13/B18/B19/B2/B20/B25/B26/B3/B38/B4/B40/B41/B5/B7/B8 Supported Flash Memory Cards: microSD, microSDHC, microSDXC - Expansion / Connectivity
Expansion Slots: 2 (total) / 2 (free) x Mini SIM card Interfaces: 2 x 1000Base-T - RJ-45 ¦ 8 x RS-232 - RJ-45 ¦ 2 x USB 3.1 Gen 1 - Type A ¦ 1 x console - RJ-45 ¦ 2 x antenna - SMA - Miscellaneous
Included Accessories: Rack ears, LTE modem (plug-in) Compliant Standards: IEC 62368-1, IEC 60950-1, CB, EN 62311, UL 62368-1, UL 60950-1, RED, FCC Part 15 Subpart B, ICES-003, CISPR 32, CISPR 35 - Power
Power Device: External power adapter Voltage Required: AC 100-240 V - Software / System Requirements
Software Included: Digi Remote Manager Premier, Digi Navigator - Dimensions & Weight (Shipping)
Shipping Width: 13.8 in Shipping Depth: 11.2 in Shipping Height: 6.1 in Shipping Weight: 7.1 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 5 years ¦ Technical support - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43211502
| BRANDS | DIGI |
|---|---|
| UNSPSC | 43211502 |
| Part# | DGI-EZ08-A1G4 |
| MFG Part# | EZ08-A1G4 |
| Device Type | Device server |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, NTP, SCP, SMTP, SNMP 3, SSH, Syslog, Telnet |
