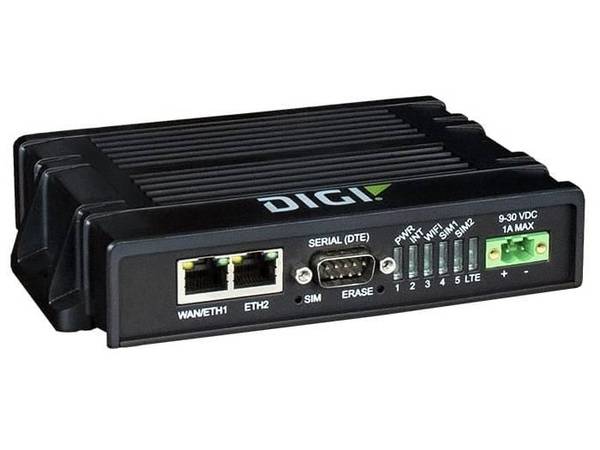

DIGI IX20 - LTE, CAT-4, 3G/2G FALLBACK, EMEA ONLY, GNSS, DUAL ETHERNET, RS-232, WI-FI, NO ACCESSORIES 7289786
SKU
7289786
CA$914.46
DIGI IX20 - LTE, CAT-4, 3G/2G FALLBACK, EMEA ONLY, GNSS, DUAL ETHERNET, RS-232, WI-FI, NO ACCESSORIES
Category: Bridges & Routers
- Primary Information
Product Description: Digi IX20W - wireless router - WWAN - Wi-Fi 5 - 3G, 4G, 2G - DIN rail mountable Device Type: Wireless router - wireless cellular modem Enclosure Type: DIN rail mountable Cellular Protocol: LTE Cat4 Generation: 3G, 4G, 2G Cellular Band: LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, UMTS B1, UMTS B2, UMTS B4, UMTS B5, UMTS B8, UMTS B6, UMTS B19 Data Link Protocol: Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Frequency Band: 2.4 GHz / 5 GHz Capacity: Maximum number of clients: 10 ¦ Maximum number of access points: 2 Network / Transport Protocol: FTP Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SCP Features: Flow control, NAPT support, VLAN support, Syslog support, MAC address filtering, IP address filtering, Access Point operational mode, SNTP support, event log, QoS, IPSec NAT-T, DNS server, NTP server, Captive Portal, FTP client, SMTP e-mail client, SISO technology, dynamic DNS client, automated failover, OpenVPN client, OpenVPN server, mDNS, GRE VPN tunnels, Multicast routing, FirstNet ready, built-in GNSS receiver, GPS/GLONASS/Galileo/BeiDou/QZSS support Power: DC 9 - 30 V Dimensions (WxDxH): 6.4 in x 4.2 in x 1.4 in Weight: 22.93 oz Localization: EMEA Manufacturer Warranty: 3-year warranty Designed For: P/N: 76000926, 76002093, 76002095, 76002104, 76002105, 76002106 - General
Device Type: Wireless router Enclosure Type: DIN rail mountable Connectivity Technology: Wireless, wired Data Link Protocol: Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Frequency Band: 2.4 GHz / 5 GHz Capacity: Maximum number of clients: 10 ¦ Maximum number of access points: 2 Network / Transport Protocol: FTP Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SCP Encryption Algorithm: WPA-Enterprise, WPA2-Enterprise, WPA3-Personal, WPA2-Personal Authentication Method: RADIUS, TACACS+ Features: Flow control, NAPT support, VLAN support, Syslog support, MAC address filtering, IP address filtering, Access Point operational mode, SNTP support, event log, QoS, IPSec NAT-T, DNS server, NTP server, Captive Portal, FTP client, SMTP e-mail client, SISO technology, dynamic DNS client, automated failover, OpenVPN client, OpenVPN server, mDNS, GRE VPN tunnels, Multicast routing, FirstNet ready, built-in GNSS receiver, GPS/GLONASS/Galileo/BeiDou/QZSS support Compliant Standards: ICES-003, CB, EN 62311, IP30, IEC 62368-1, RED, RoHS3, AS/NZS CISPR 32, FCC Part 15 Subpart B RAM: 256 MB Flash Memory: 256 MB Built-in Devices: QZSS Status Indicators: Power, LTE, Internet, Wi-Fi, SIM1, SIM2 - Communications
Type: Wireless cellular modem Cellular Protocol: LTE Cat4 Generation: 3G, 4G, 2G Cellular Band: LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, UMTS B1, UMTS B2, UMTS B4, UMTS B5, UMTS B8, UMTS B6, UMTS B19 Max Transfer Rate: 150 Mbps - Expansion / Connectivity
Interfaces: Antenna: 2 x SMA - LTE ¦ WAN: 1 x SMA ¦ LAN: 2 x 10Base-T/100Base-TX - RJ-45 ¦ Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) Expansion Slots: 2 (total) / 2 (free) x Mini-SIM - Antenna
Antenna: External detachable Antenna Qty: 3 - Power
Power Device: External power adapter Voltage Required: DC 9 - 30 V - Miscellaneous
Localization: EMEA - Software / System Requirements
Software Included: Digi Remote Manager - Dimensions & Weight
Width: 6.4 in Depth: 4.2 in Height: 1.4 in Weight: 22.93 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 158 °F Humidity Range Operating: 5 - 95% (non-condensing) - Compatibility Information
Designed For: P/N: 76000926, 76002093, 76002095, 76002104, 76002105, 76002106 - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222609
| BRANDS | DIGI |
|---|---|
| UNSPSC | 43222609 |
| Part# | DGI-IX20-W0G4-G |
| MFG Part# | IX20-W0G4-G |
| Device Type | Wireless router |
| Connectivity Technology | wired, Wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, RS-232 |
| Type | Wireless cellular modem |
| Frequency Band | 2.4 GHz / 5 GHz |
| Max Transfer Rate | 150 Mbps |
| Enclosure Type | DIN rail mountable |
| Remote Management Protocol | HTTP, HTTPS, SCP, SNMP 2, SNMP 3, SSH, Telnet |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA2-Personal, WPA3-Personal |
