DIGI IX20 - LTE, CAT-4, 450 MHZ, DUAL ETHERNET, RS-232, NO ACCESSORIES, EU ONLY 7289782
SKU
7289782
CA$912.45

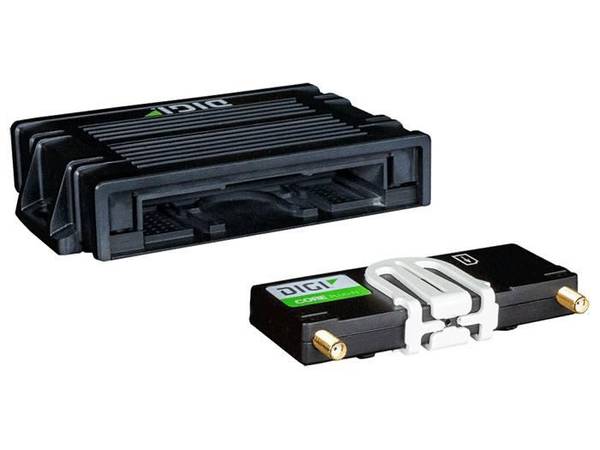

DIGI IX20 - LTE, CAT-4, 450 MHZ, DUAL ETHERNET, RS-232, NO ACCESSORIES, EU ONLY
Category: Bridges & Routers
- Primary Information
Product Description: Digi IX20 - router - WWAN - DIN rail mountable Device Type: Router - wireless cellular modem - 2-port switch (integrated) Enclosure Type: DIN rail mountable Cellular Protocol: LTE Cat4 Cellular Band: LTE B3, LTE B7, LTE B20, LTE B31, LTE B72 Data Link Protocol: Ethernet, Fast Ethernet, RS-232 Capacity: Maximum number of access points: 2 ¦ Maximum number of clients: 10 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH Features: NAT support, NAPT support, VLAN support, Syslog support, MAC address filtering, IP address filtering, SNTP support, event log, QoS, IPSec NAT-T, DNS server, NTP server, Captive Portal, FTP client, SMTP e-mail client, SISO technology, IP forwarding support, dynamic DNS client, automated failover, OpenVPN client, OpenVPN server, mDNS, GRE VPN tunnels, Multicast routing, IND Power: DC 9 - 30 V Dimensions (WxDxH): 6.4 in x 4.2 in x 1.4 in Weight: 22.93 oz Localization: EMEA Manufacturer Warranty: 3-year warranty - General
Device Type: Router - 2-port switch (integrated) Enclosure Type: DIN rail mountable Connectivity Technology: Wireless, wired Data Link Protocol: Ethernet, Fast Ethernet, RS-232 Capacity: Maximum number of access points: 2 ¦ Maximum number of clients: 10 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH Encryption Algorithm: Triple DES, RSA, MD5, SSL, DH, SHA-1, SSL 3.0, SSL 2.0, 256-bit AES, IKEv2, FIPS 197, 256-bit SHA, TLS 1.2, 512-bit SHA, 384-bit SHA, IKEv1 Authentication Method: Secure Shell (SSH), RADIUS, TACACS+ Features: NAT support, NAPT support, VLAN support, Syslog support, MAC address filtering, IP address filtering, SNTP support, event log, QoS, IPSec NAT-T, DNS server, NTP server, Captive Portal, FTP client, SMTP e-mail client, SISO technology, IP forwarding support, dynamic DNS client, automated failover, OpenVPN client, OpenVPN server, mDNS, GRE VPN tunnels, Multicast routing, IND Compliant Standards: ICES-003, CB, FCC Part 15 B, EN 62311, IP30, IEC 62368-1, RED, RoHS3, AS/NZS CISPR 32 RAM: 256 MB Flash Memory: 256 MB Status Indicators: Power, LTE, Internet, Wi-Fi, SIM1, SIM2 - Communications
Type: Wireless cellular modem Cellular Protocol: LTE Cat4 Cellular Band: LTE B3, LTE B7, LTE B20, LTE B31, LTE B72 - Expansion / Connectivity
Interfaces: Antenna: 2 x SMA - LTE ¦ LAN: 2 x 10Base-T/100Base-TX - RJ-45 ¦ Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) Expansion Slots: 2 (total) / 2 (free) x Mini-SIM - Antenna
Antenna: External detachable Antenna Qty: 2 - Power
Power Device: External power adapter Voltage Required: DC 9 - 30 V - Miscellaneous
Included Accessories: Ethernet cable, plug-in LTE modem (1002-CM45-OEU) Cables Included: DB-9 to RS-232 cable Localization: EMEA - Software / System Requirements
Software Included: Digi Remote Manager - Dimensions & Weight
Width: 6.4 in Depth: 4.2 in Height: 1.4 in Weight: 22.93 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 158 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222609
| BRANDS | DIGI |
|---|---|
| UNSPSC | 43222609 |
| Part# | DGI-IX20-0045 |
| MFG Part# | IX20-0045 |
| Device Type | Router - 2-port switch (integrated) |
| Connectivity Technology | wired, Wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Type | Wireless cellular modem |
| Enclosure Type | DIN rail mountable |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet |
| Encryption Algorithm | 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, DH, FIPS 197, IKEv1, IKEv2, MD5, RSA, SHA-1, SSL, SSL 2.0, SSL 3.0, TLS 1.2, Triple DES |
