Model: | UN552-TMX4P |
Display Type: | LED Display |
Flat / Curved: | Flat |
Max Resolution: | 1920 x 1080 |
Display Diagonal Size: | 55 Inch |
Display / Color Support: | 1.07 Billion Colors |
Display / Response Time: | 8 Ms |
Display / Refresh Rate: | 60 Hz |
Dot Pitch / Pixel Pitch: | 0.5 Mm |
Image Contrast Ratio: | 1200:1 (without local dimming) |
Brightness: | 700 cd/m2 (maximum) |
Viewing Angle: | 178/178 |
Image Aspect Ratio: | 16:9 |
Modes: | ECO Mode |
HDR Capable: | Yes |
Picture Enhancements: | Variable picture modes |
Network Connectivity: | LAN |
Audio Output: | 3.5mm Mini-Jack, External Speaker Jack (2) |
Speakers: | Yes |
Interfaces: | VGA 15-pin D-sub DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered) |
Video Interfaces: | DVI-D; HDMI 1.4; VGA; DisplayPort 1.2 |
Power Consumption Operational: | 150 Watt |
Power / Voltage Required: | 4.2A 100V, 1.7A 240V |
Stand: | Yes |
VESA Mount Compatible: | 400 x 400 mm |
Width: | 47.8 Inch |
Depth: | 4.1 Inch |
Height: | 27 Inch |
Service & Support Type: | 3 Years |

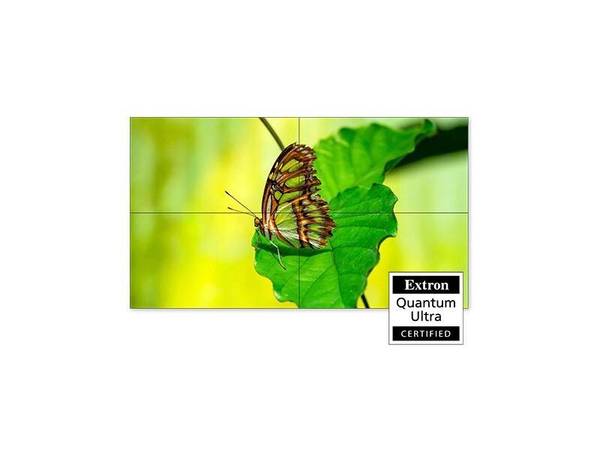

Features: | Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy |
Min Operating Temperature: | 5 Celsius |
Max Operating Temperature: | 40 Celsius |
Humidity Range Operating: | 20-80% |
