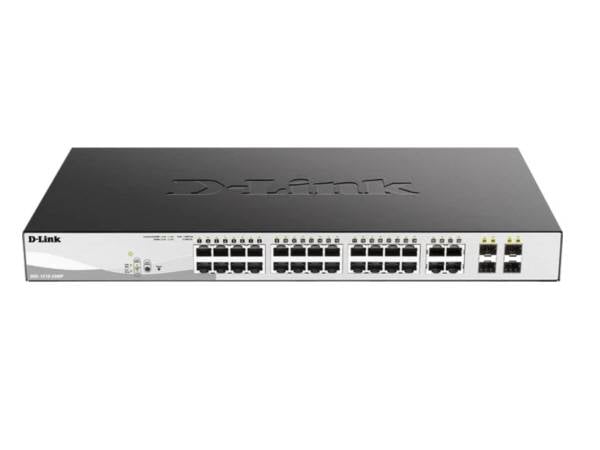

Network Device Type: | Switch |
Model: | DGS-1210-28MP |
Form Factor: | Desktop |
Connectivity Technology: | Wired |
Data Transfer Rate: | 1 Gbps |
Networking / Ports Qty: | 32 |
Data Link Protocol: | Gigabit Ethernet |
RAM / Total Installed Size: | 128 MB |
Flash Memory / Installed Size: | 32 MB |
Networking Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
Max Power Consumption: | 446.1 Watt |
Power / Voltage Required: | 100 to 240 VAC |
MTBF: | 277967 hours |
Features: | All ports support PoE+ with up to 30W per port and include 4 SFP uplink ports, with a total power budget of 370W, suitable for powering a variety of devices including IP cameras, VoIP phones, and access points. |
Power Over Ethernet (PoE) Support: | yes |
PoE Power Consumption: | 370W |
MAC Address Table Size: | 8K entries |
Jumbo Frame Support: | 9216 Bytes |
Remote Management Protocol: | IPv6; DHCP; IPv4 |
Routing Protocol: | STP, LACP |
Authentication Method: | RADIUS, MD5 |
10/100/1000BASE-T Ports: | 24 |
SFP Ports: | 4 |
Interfaces: | 24 x 10/100/1000BASE-T PoE+, 4 x 100/1000Mbps COMBO SFP |
Interfaces: | 24 x 10/100/1000BASE-T PoE+, 4 x 100/1000Mbps COMBO SFP |
10/100/1000BASE-T Ports: | 24 |
SFP Ports: | 4 |
Width: | 17.3 Inch |
Depth: | 9.8 Inch |
Height: | 1.73 Inch |
Weight: | 8.7 lbs. |
Min Operating Temperature: | -5 Celsius |
Max Operating Temperature: | 50 Celsius |
Min Storage Temperature: | -20 Celsius |
Max Storage Temperature: | 70 Celsius |
COO: | CHINA |
UNSPSC Code: | 43222612 |
BRANDS | D-LINK SOLUTIONS |
---|---|
UNSPSC | 43222612 |
Part# | DLN-DGS-1210-28MP |
MFG Part# | DGS-1210-28MP |
UPC | 790069427664 |
Flash Memory / Installed Size | 32 MB |
Network Device Type | Switch |
RAM / Total Installed Size | 128 MB |
10/100/1000BASE-T Ports | 24 |
Connectivity Technology | Wired |
Data Transfer Rate | 1 Gbps |
Form Factor | Desktop |
Networking / Ports Qty | 32 |
Data Link Protocol | Gigabit Ethernet |
Remote Management Protocol | DHCP, IPv4, IPv6 |
