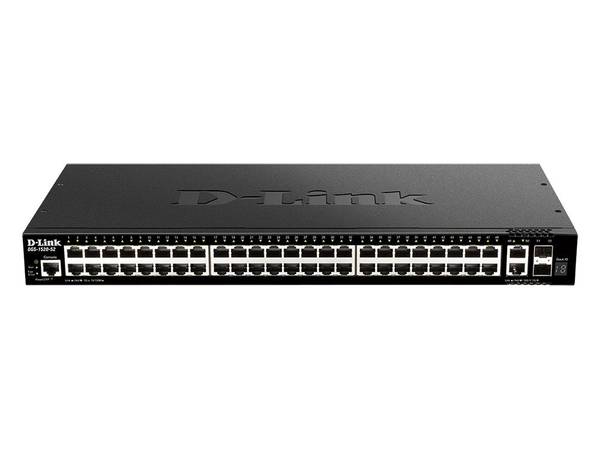

DLINK 1520 SERIES SMART MANAGED 48-PORT GIGABIT SWITCH WITH 2 SFP+, 2 10GBE 6732899
SKU
6732899
CA$1,959.99
1520 Series Smart Managed 48-Port Gigabit Switch with 2 SFP+, 2 10GbE
Category: Hubs & Switches
- Primary Information
Product Description: D-Link DGS 1520-52 - switch - 52 ports - smart - rack-mountable Device Type: Switch - 52 ports - L3 - smart - stackable Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ Performance: Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps ¦ Stacking bandwidth: 80 Gbps Capacity: IGMP groups: 512 ¦ MLD groups: 256 ¦ VLAN groups: 4000 ¦ Static ARP entries: 256 MAC Address Table Size: 16384 entries Jumbo Frame Support: 12288 bytes Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-SM, PIM-SSM, static IP routing, OSPF, RIPng, ECMP, RIP-1, RIP-2, policy-based routing (PBR), DVMRP Remote Management Protocol: SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9 Features: ZTP, RSPAN, ERPS, DNA support, VRRP support, MDI, MDI-X, Link Aggregation, STP support, BPDU Filter, Loop Guard, MSTP support, RSTP, Root Guard, flow mirroring, loopback detection, port mirroring, VLAN mirroring, ERPS v2, IGMP snooping, GVRP, Private VLAN, VLAN trunking, Voice VLAN, OSPF, QoS, WDRR, WRED, WRR, CoS, BPDU, DoS, EEE, D-Link DDP, NTP 3, NTP 4, store and forward Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1Qbb Power: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 17.4 in x 8.2 in x 1.7 in Weight: 6.13 lbs - General
Device Type: Switch - 52 ports - L3 - smart - stackable Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ Performance: Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps ¦ Stacking bandwidth: 80 Gbps Capacity: IGMP groups: 512 ¦ MLD groups: 256 ¦ VLAN groups: 4000 ¦ Static ARP entries: 256 MAC Address Table Size: 16384 entries Jumbo Frame Support: 12288 bytes Max Units In A Stack: 8 Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-SM, PIM-SSM, static IP routing, OSPF, RIPng, ECMP, RIP-1, RIP-2, policy-based routing (PBR), DVMRP Remote Management Protocol: SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9 Encryption Algorithm: TLS 1.0, TLS 1.1, TLS 1.2, SSL Authentication Method: Secure Shell v.2 (SSH2), RADIUS, TACACS+ Features: ZTP, RSPAN, ERPS, DNA support, VRRP support, MDI, MDI-X, Link Aggregation, STP support, BPDU Filter, Loop Guard, MSTP support, RSTP, Root Guard, flow mirroring, loopback detection, port mirroring, VLAN mirroring, ERPS v2, IGMP snooping, GVRP, Private VLAN, VLAN trunking, Voice VLAN, OSPF, QoS, WDRR, WRED, WRR, CoS, BPDU, DoS, EEE, D-Link DDP, NTP 3, NTP 4, store and forward Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1Qbb Status Indicators: Power, stack, fan, link/activity - Expansion / Connectivity
Interfaces: 48 x 1000Base-T RJ-45 ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ - Power
Power Device: Internal power supply Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 51.2 Watt - Miscellaneous
MTBF: 364888 hours Compliant Standards: FCC Class A certified, IC Class A, RCM Class A, VCCI Class A, BSMI Class A - Dimensions & Weight
Width: 17.4 in Depth: 8.2 in Height: 1.7 in Weight: 6.13 lbs - Environmental Parameters
Min Operating Temperature: 23 °F Max Operating Temperature: 122 °F Humidity Range Operating: 10 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | D-LINK SOLUTIONS |
|---|---|
| UNSPSC | 43222612 |
| Part# | DLN-DGS-1520-52 |
| MFG Part# | DGS-1520-52 |
| UPC | 790069454783 |
| Device Type | Switch - 52 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable 1U |
| Remote Management Protocol | RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3 |
| Encryption Algorithm | SSL, TLS 1.0, TLS 1.1, TLS 1.2 |
