EATON 9PX 3000 208V RT GL 5684927
SKU
5684927
CA$8,405.97

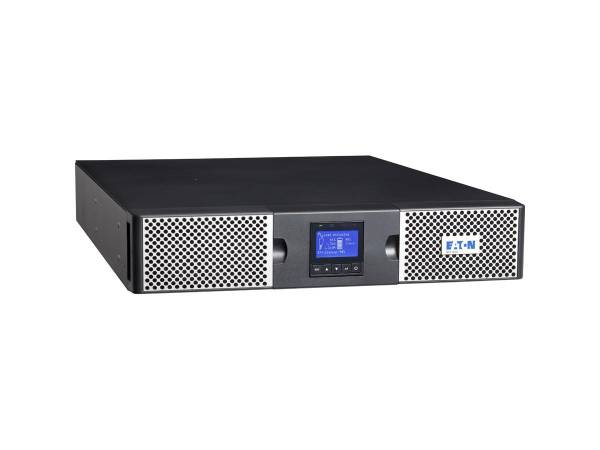

Eaton 9PX UPS - UPS - 2U,Rack/Tower - Online,Double Conversion - 208V default (200/208/220/230/240V) - 3KW - Power Provided (VA): 3000 - RS-232 serial cable;USB cable - (2) L6-20R, (1) L6-30R - 3 year limited warranty
Category: UPS
- Primary Information
Product Description: Eaton 9PX 9PX3000GLRT - UPS - 3000 Watt - 3000 VA Device Type: UPS - rack-mountable / external Rack Size: 2U Weight: 60.41 lbs Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 200/208/220/230/240 V ± 1% Power Capacity: 3000 Watt / 3000 VA Input Connectors: 1 x power IEC 60320 C20, power NEMA L6-20P Output connectors: 2 x power NEMA L6-20 ¦ 1 x power NEMA L6-30 Networking: RS-232, USB Included Accessories: Tower stand Color: Black and silver Dimensions (WxDxH): 17.3 in x 23.8 in x 3.4 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 2U Color: Black and silver - Power Device
UPS Technology: On-line Input Voltage: AC 200/208/220/230/240 V Input Voltage Range: AC 176 - 276 / 100 - 276 V Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60320 C20, power NEMA L6-20P Power Output Connectors Details: 2 x power NEMA L6-20 ¦ 1 x power NEMA L6-30 Output Voltage: AC 200/208/220/230/240 V ± 1% Power Capacity: 3000 Watt / 3000 VA Efficiency: 93% Power Factor (PF): 0.99 Total Harmonic Distortion (THD): 3 % - Battery
Run Time (Up To): 40 min at 500 Watts ¦ 19 min at 1000 Watts ¦ 11 min at 1500 Watts ¦ 7 min at 2000 Watts ¦ 4 min at 3000 Watts Features: Maintenance free, sealed - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) ¦ 1 x USB Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Included Accessories: Tower stand Cables Included: Serial cable - external ¦ USB cable - external ¦ Power cable 6 ft Rack Mounting Kit: Included Features: Advance Battery Management (ABM), LCD display, LED indicators, cold-start function, automatic self-test, Remote Emergency Power Off (REPO) Compliant Standards: CISPR 22 Class B, ANSI C62.41, NOM, IEC 62040-2 class B, RoHS, cULus, VCCI Class B, FCC Part 15 Class B - Software / System Requirements
Software Included: Eaton Intelligent Power Protector - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Sound Emission: 47 dB - Dimensions & Weight
Width: 17.3 in Depth: 23.8 in Height: 3.4 in Weight: 60.41 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | EATON INDUSTRIES |
|---|---|
| UNSPSC | 39121011 |
| Part# | POW-9PX3000GLRT |
| MFG Part# | 9PX3000GLRT |
| UPC | 743172081315 |
| Device Type | UPS - rack-mountable / external |
| UPS Technology | On-line |
| Color | Black and silver |
| Efficiency | 93% |
