EATON ACC 9PX 3000 120V RT 5684931
SKU
5684931
CA$8,405.97

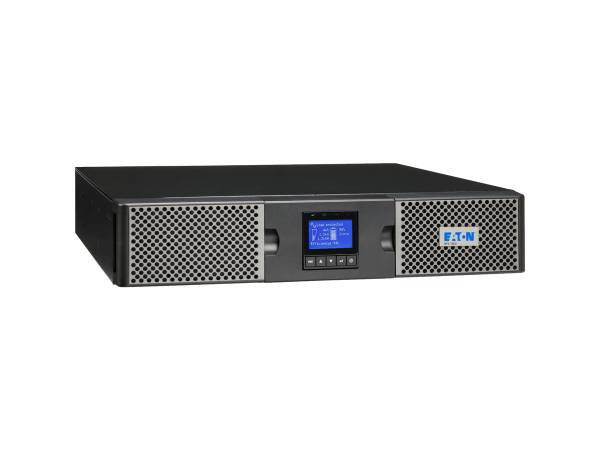

Eaton 9PX UPS - UPS - 2U,Rack/Tower - Online,Double Conversion - 120V default (100/110/120/125V) - 2700Watt - 3000VA - RS-232 serial cable;USB cable - (6) 5-20R, (1) L5-30R - 3 year limited warranty
Category: UPS
- Primary Information
Product Description: Eaton 9PX 9PX3000RT - UPS - 2700 Watt - 3000 VA Device Type: UPS - rack-mountable / external Rack Size: 2U Weight: 63.05 lbs Input Voltage: AC 100/110/120/125 V Output Voltage: AC 100/110/120/125 V ± 1% Power Capacity: 2700 Watt / 3000 VA Input Connectors: 1 x power NEMA L5-30P Output connectors: 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-30 Networking: Ethernet, RS-232, USB Included Accessories: Tower stand, rack mounting rails Color: Black and silver Dimensions (WxDxH): 17.3 in x 23.8 in x 3.4 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 2U Color: Black and silver - Power Device
UPS Technology: On-line Input Voltage: AC 100/110/120/125 V Input Voltage Range: AC 100 - 144 / 60 - 144 V Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L5-30P Power Output Connectors Details: 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-30 Output Voltage: AC 100/110/120/125 V ± 1% Power Capacity: 2700 Watt / 3000 VA Circuit Protection: Circuit breaker Efficiency: 91% Power Factor (PF): 0.99 Total Harmonic Distortion (THD): 3 % - Battery
Features: Maintenance free, sealed - Networking
Remote Management Interface: Ethernet, RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) ¦ 1 x USB ¦ 1 x management (Ethernet) - RJ-45 Expansion Slots: 1 (total) / 0 (free) x expansion slot - Miscellaneous
Included Accessories: Tower stand, rack mounting rails Cables Included: Serial cable - external - 6 ft ¦ USB cable - external ¦ Power cable - integrated - 8 ft Rack Mounting Kit: Included Features: Advance Battery Management (ABM), LCD display, LED indicators, cold-start function, automatic self-test, Remote Emergency Power Off (REPO) Compliant Standards: CISPR 22 Class B, ANSI C62.41, NOM, CISPR 22, IEC 62040-2, RoHS, cULus, VCCI Class B - Software / System Requirements
Software Included: Eaton Intelligent Power Protector - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 96% (non-condensing) Sound Emission: 47 dB - Dimensions & Weight
Width: 17.3 in Depth: 23.8 in Height: 3.4 in Weight: 63.05 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | EATON INDUSTRIES |
|---|---|
| UNSPSC | 39121011 |
| Part# | POW-9PX3000RT |
| MFG Part# | 9PX3000RT |
| UPC | 743172081285 |
| Device Type | UPS - rack-mountable / external |
| UPS Technology | On-line |
| Color | Black and silver |
| Efficiency | 91% |
| Circuit Protection | Circuit breaker |
