EATON PDU G4 MA 0U 532P6W 24XC13,24XC39 7364214
SKU
7364214
CA$5,954.83

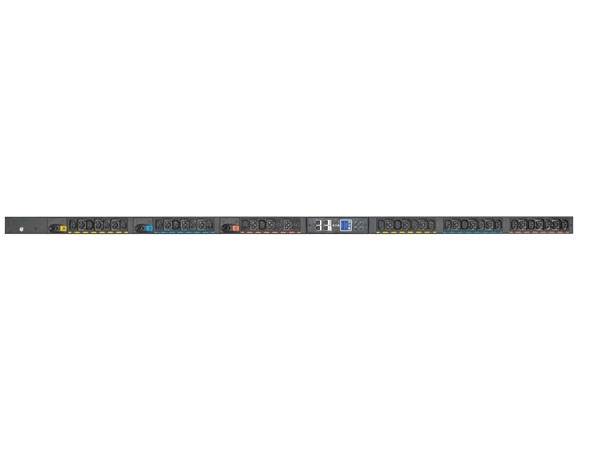

EATON MANAGED G4 RACK PDU, 0U, 43U, 532P6W INPUT, 10FT CORD, 17.3KW, 32A, 240/415V, 48 OUTLETS (24)C13 (24)C39
Category: Power Distribution Units
- Primary Information
Product Description: Eaton G4 3-Phase Managed Rack PDU G4 240/415V 48 Outlets 24A/32A 17.3kW 532P6W Input 10ft Cord 0U Vertical TAA - power distribution strip - managed - 17.3 kW - 17300 VA - TAA Compliant Device Type: Power distribution strip - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 19.4 lbs Input Wiring: 3-phase Input Voltage: AC 240/415 V Output Voltage: AC 208 V Power Capacity: 17.3 kW / 17300 VA Input Connectors: 1 x power IEC 60309 532P6W Output connectors: 24 x power IEC 60320 C13 ¦ 24 x power IEC 60320 C39 Networking: Ethernet 10/100/1000, USB Remote Management Protocol: SNMP Color: Black TAA Compliant: TAA Compliant Dimensions (WxDxH): 2 in x 0.8 in x 74.8 in Manufacturer Warranty: 3-year warranty - General
Device Type: Power distribution strip - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black - Power Device
Input Voltage: AC 240/415 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60309 532P6W Power Output Connectors Details: 24 x power IEC 60320 C13 ¦ 24 x power IEC 60320 C39 Output Voltage: AC 208 V 50/60 Hz Max Electric Current: 32 A Power Capacity: 17.3 kW / 17300 VA Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100/1000, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 - Miscellaneous
Cables Included: Power cable 10 ft Rack Mounting Kit: Included Features: Vertical mount, aluminum housing, Zero Touch Provisioning (ZTP), LCD display, 6 circuit breakers, LED indicators, cascadable, overload protection, daisy chain functionality Compliant Standards: ICES, UL 62368-1, cTUVus, FCC Part 15 A, RoHS TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 95% RH (non-condensing) - Dimensions & Weight
Width: 2 in Depth: 0.8 in Height: 74.8 in Weight: 19.4 lbs - Dimensions & Weight (Shipping)
Shipping Width: 4.7 in Shipping Depth: 8.3 in Shipping Height: 81.5 in Shipping Weight: 31.75 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | EATON INDUSTRIES |
|---|---|
| UNSPSC | 39121017 |
| Part# | POW-EVMAG332C |
| MFG Part# | EVMAG332C |
| UPC | 786689795054 |
| Device Type | Power distribution strip - rack-mountable |
| Color | Black |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
